Ceramic coatings are sold on a number: 5 years, 7 years, 9 years, lifetime. The chemistry says the number is the lab ceiling, not the field outcome. A pro-installed coating on a garaged Seattle car and a DIY 9H on a Phoenix daily driver going through brush washes are not the same vehicle for coating-life purposes, even with the same bottle.
The short answer
| Tier | Realistic life on a daily driver |
|---|---|
| Pro-applied premium (installer-only) | 4 to 6 years |
| Prosumer 9H (CQuartz UK, Gyeon Mohs) | 2 to 4 years |

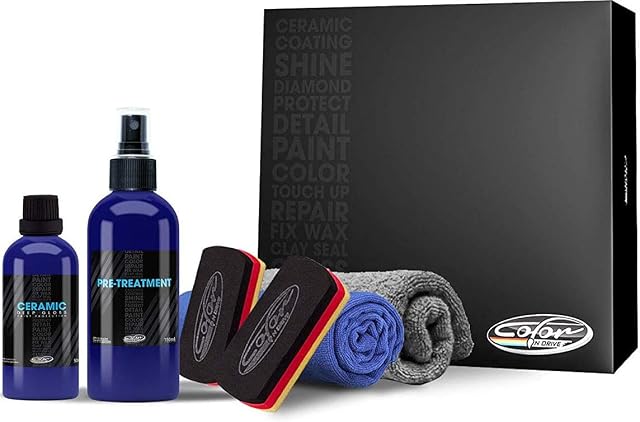

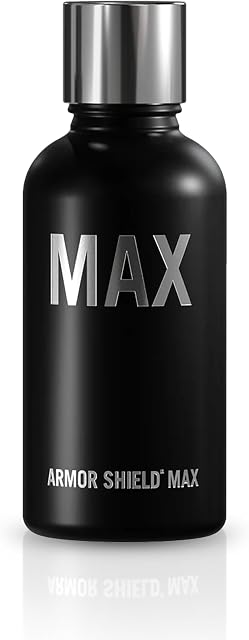

| Consumer DIY 9H (AvalonKing, Color N Drive) | 1 to 2 years |

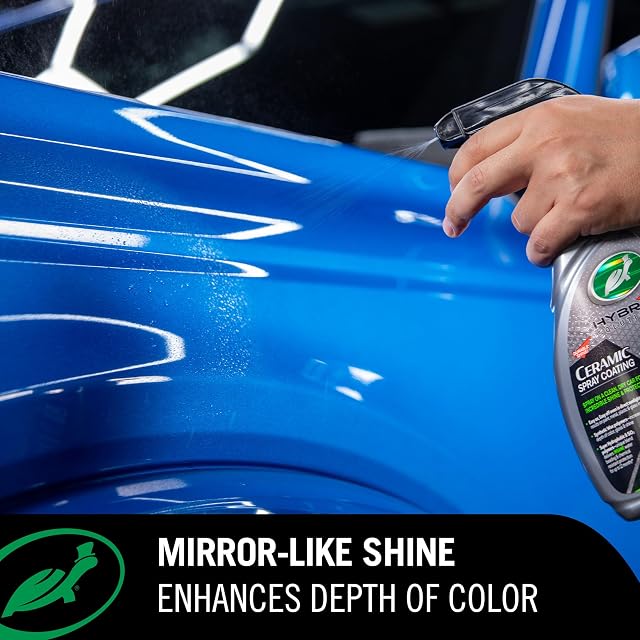

| Hybrid ceramic spray, SiO2 booster | 3 to 6 months per application |
| Ceramic spray wax | 1 to 3 months per application |
The bottle matters less than what you do before and after. Prep, wash chemistry, climate, and quarterly boosters are the real durability inputs.
What a ceramic coating actually is
"Ceramic" is shorthand for a thin-film silicon-oxygen lattice cured onto the clearcoat. The structural unit is two silicon atoms bridged by oxygen, written Si-O-Si. Same bond that holds quartz, window glass, and beach sand together. Si-O carries roughly 452 kJ/mol; the C-O bonds in waxes and polymer sealants carry about 358 kJ/mol. That gap is the entire chemistry argument for ceramic over wax.
The film is not pre-formed glass. It cures in place through a sol-gel reaction: a liquid precursor, typically tetraethyl orthosilicate (TEOS) or a similar alkoxysilane, hydrolyzes in trace atmospheric moisture, then condenses with neighbors, releasing ethanol or methanol and forming Si-O-Si crosslinks. Over hours to days the network propagates into a glass-like film a few microns thick, covalently bonded to the clearcoat.
Real coatings keep organic side groups (methyl, phenyl, fluoroalkyl) tethered to the silicon to give the film flexibility. Heat is not what kills a coating; panel temperatures stay well below the onset where TGA data shows the organofunctional side groups begin to degrade. UV, chemistry, and mechanical wear are.
SiO2, polysilazane, hybrid, graphene
The SiO2 / siloxane family is standard DIY 9H chemistry: TEOS-style sol-gel cure, amorphous silica matrix, organofunctional side groups. Durability ceiling on a daily driver: 2 to 4 years with care.
Polysilazane chemistry uses a silicon-nitrogen-hydrogen backbone that reacts with atmospheric moisture, releasing ammonia while forming the same Si-O-Si bonds. The precursor has more reactive sites per chain, so the cured film is denser. Durability ceiling: 4 to 7 years on the prosumer and pro-installed tier.
Hybrid coatings blend polysiloxane and polysilazane with PDMS lubricity. Most of the prosumer 9H market lives here.
Graphene-augmented SiO2 disperses graphene oxide sheets in a silica matrix at under 1 percent loading. Peer-reviewed work reports hardness gains of 30 to 40 percent. The 7-plus-year claims on consumer bottles are not independently verified, and the base chemistry is still SiO2 with the same failure pathways.
Fluoropolymers and the PFAS context
Some coatings blend in fluorosilane chemistry: a perfluorinated tail bonded to a hydrolyzable silane head. The silane half bonds into the silica lattice; the fluoropolymer face pushes contact angles above 110 degrees. The trade-off is PFAS. EPA's TSCA Section 5(a)(2) Significant New Use Rule from July 2020 requires pre-approval for resumed manufacture of products containing certain long-chain PFAS. The industry has been migrating to short-chain alternatives.
How "durability" is actually measured
The lab metric is the static water contact angle: place a droplet on the panel, capture the edge geometry. A fresh ceramic coating reads 100 to 115 degrees. A new wax reads 85 to 95. Anything above 150 is superhydrophobic and is not what an automotive coating delivers.
Hydrophobic decay is what manufacturers test: programmed wash cycles, contact angle re-measured every 20 to 50 cycles. Most production coatings hold above 100 degrees for the first 30 to 50 cycles, then decay linearly toward 85 by 150 to 200 cycles. At about 80 degrees the coating is functionally bare clearcoat.
ISO 16474 is what manufacturers cite for multi-year claims. ISO 16474-2 uses a xenon-arc lamp simulating sunlight, 102 minutes of light at 60 W/m² and 18 minutes of light plus water spray. ISO 16474-3 uses fluorescent UV lamps tuned to the UV-A band. Roughly, 1000 hours of ISO 16474-2 corresponds to one year of unsheltered Sunbelt sun.
Real moisture lands at night; ISO water-spray cycles are daytime-biased. Acid rain and salt are not in the protocol. A "5-year" lab number is an upper bound on UV resistance, not a field-life forecast.
Realistic durability by tier and climate
The columns reflect what actually changes coating life: storage, parking, and brush versus hand washing.
| Tier | Garage, hand wash | Outdoor, hand wash | Outdoor, brush wash |
|---|---|---|---|
| Pro-applied premium | 7 to 10 yr | 4 to 6 yr | 2 to 3 yr |
| Prosumer 9H | 4 to 6 yr | 2 to 4 yr | 1 to 2 yr |
| Consumer DIY 9H | 2 to 3 yr | 1 to 2 yr | 6 to 12 mo |
| Hybrid ceramic spray, SiO2 booster | 6 to 12 mo per app | 3 to 6 mo per app | 1 to 3 mo per app |
| Ceramic spray wax | 3 to 6 mo per app | 1 to 3 mo per app | weeks |
| Polymer sealant (reference) | 4 to 6 mo | 2 to 3 mo | 1 mo |
| Carnauba wax (reference) | 6 to 12 wk | 4 to 6 wk | weeks |
The garage column is what the warranty number is calibrated for. The outdoor hand-wash column is the realistic daily-driver outcome with care. The brush-wash column is what most consumers actually experience.
A daily driver in Phoenix sees roughly 7000 MJ/m² of annual solar irradiation; a Seattle garage queen sees a fraction of that. NREL's solar maps show the gap is enough that a coating rated for 5 lab-years can deliver seven in one climate and three in the other with no change to chemistry or prep.
Why ceramic coatings actually fail
The chemistry fails through four mechanisms. Knowing which one tells you whether to recoat, decontaminate, or change your wash routine.
UV bond scission in the top layer
Sunlight delivers cumulative UV-A and UV-B doses that exceed the bond-dissociation energy of the carbon-bearing side groups. The Si-O-Si backbone at 452 kJ/mol resists direct UV scission, but the C-H and C-O bonds on the methyl, phenyl, and alkyl-fluoro side groups break with cumulative exposure. The surface oxidizes from the top down; hydrophobicity declines from a fresh 110 degrees to about 85 to 90 over one to three years of unsheltered sun while the network underneath stays intact.
Peer-reviewed work in npj Materials Degradation on UV ageing of silica-based films reports the same pattern: gradual surface oxidation, recovery only through mechanical refresh. The commercial response is hindered-amine light stabilizers and UV absorbers blended in. Whether a given consumer kit contains stabilizers at meaningful loading is something the SDS rarely tells you.
Alkaline hydrolysis from harsh shampoos and degreasers
The Si-O-Si network is stable from pH 4 to 10 at room temperature. Above pH 10, hydroxide ions attack the silicon centers and break the network: Si-O-Si plus OH- yields Si-OH plus Si-O-. Once cleaved, silica fragments wash away on the next rinse. This is why every coating manufacturer instructs pH-neutral wash and warns against high-pH degreasers and traffic-film removers on coated paint.
The chemistry predicts what anecdotal field reports describe: diluted all-purpose cleaner at working pH (typically 11 to 12) attacks the more lightly crosslinked topcoat layer of multi-layer ceramic stacks within a handful of washes, with the underlying base layer holding intact. The mechanism is alkaline hydrolysis at APC working pH on the less-dense topcoat first. Peer-reviewed data on the silica-network stability window comes from the sol-gel coatings literature; the consumer-coating-stack version of that failure mode is documented in long-term enthusiast write-ups but has not been quantified in independent lab work.
A pH-neutral car shampoo does not strip the film. Any product labeled "heavy duty," "industrial," or "traffic film remover" with an SDS pH above 10 is the alkaline-hydrolysis pathway in a spray trigger. On coated paint, those products engage the same hydroxide attack the chemistry above describes; uncoated panels do not carry the silica network that pathway requires.
Mechanical micro-marring from wash technique
Even a clean microfiber mitt drags across the coating with shear force; over thousands of cycles the top layer scratches at the micron scale. Brush-style automatic washes are the worst case: rotating brushes apply far higher localized shear than a hand mitt and embed grit between bristles.
Manufacturer-published guides commonly cite a meaningful life reduction from brush washes versus a disciplined two-bucket hand wash. The damage is purely mechanical. Two-bucket wash, forced-air blower for the geometry that traps water, and plush microfiber for the bulk dry are the technique that drops the per-cycle mechanical insult on the coating film.
Water-spot etching from hard water and acid rain
Tap water carries calcium and magnesium as soluble bicarbonates. When a droplet evaporates, the water leaves and the minerals do not. On bare clearcoat the resulting calcium carbonate ring polishes off. On a coated panel mineral residue is harder to remove than from bare clearcoat, plausibly via integration of calcium into the silica network at the droplet contact line.
Urban acid rain runs pH 4.2 to 4.4, per EPA monitoring data. When an acidic droplet concentrates during dry-down, the rim sees far higher local acidity than the bulk drop ever had. Acid-rain spotting on coated paint is not cosmetic only; the local pH at the dry-down rim is well outside the pH 4 to 10 stability window the silica network depends on.
The defense is geometry: get the water off before it evaporates. A plush drying towel handles the bulk; a forced-air blower clears mirror seams, badge edges, and panel gaps.
What actually extends coating life
The variables that change coating life are not the brand on the box. Ranked by impact:
Prep is the single largest variable
Manufacturer instructions converge on the same sequence: decontaminate (iron remover plus clay), polish, strip with an isopropanol-based panel wipe, then coat. The most common DIY failure mode is residual polish oil under the coating. Polish carrier oils form a release layer between the silica film and the clearcoat; the coating bonds to the oil, not the paint, and detaches in weeks instead of years.

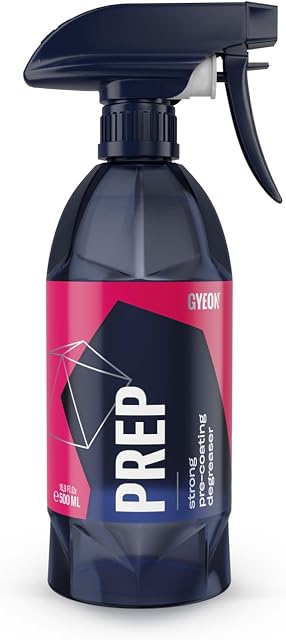

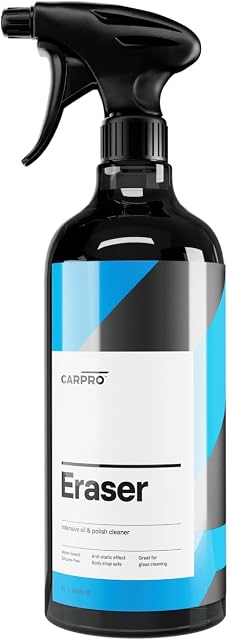

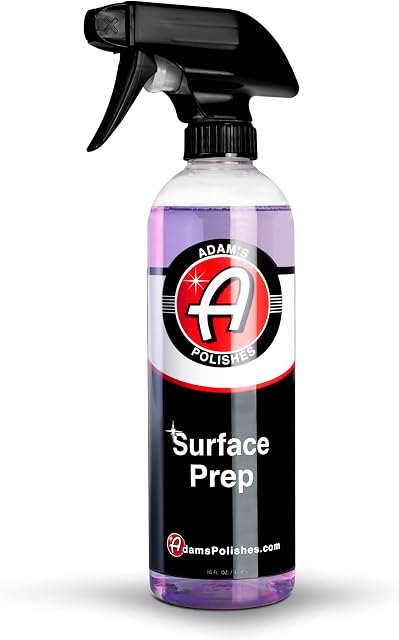

CarPro Eraser is an isopropanol-based panel wipe widely paired with sol-gel coatings. Adam's Surface Prep is the water-base option. Gyeon Q2 Prep is paired with Gyeon coatings. The panel wipe category sorts every cataloged option by score. Iron decontamination before polishing matters as much; CarPro Iron X is the thioglycolate-based reference.
A coating that "failed in 6 months when the warranty said 5 years" almost always traces to one of three prep failures: skipped iron decon, residual polish oil under the film, or low surface energy from a wax the prep did not remove.
Climate sets the UV and acid dose
Arizona and Florida deliver 6500 to 7000 MJ/m² of annual solar irradiation; the upper Midwest delivers 4000 to 4500. A coating rated for 5 lab-years can deliver seven in Seattle and three in Phoenix from UV dose alone. Acid-rain regions layer chemical attack on top of UV; salt-belt winter adds chloride brine that drives both corrosion and wash frequency.
Parking and wash discipline compound
Garage parking removes UV and water-spot exposure between drives. A garage-parked daily driver with disciplined washes can hold 5-plus years on a prosumer 9H; the same coating outdoors in the same city might give 2.5 to 3. A coated car washed at home every two weeks with a two-bucket method sees about 130 cycles in 5 years. Run through a brush wash twice a week, that becomes 520 cycles with 5 to 10 times the wear per cycle, or roughly 20 to 40 times the total insult.
Quarterly boosters add hydrophobicity, not structure
A SiO2 booster applied every three to four months restores the top molecular layer of fresh sub-micron silica plus a lubricity component. Contact angle returns to fresh-coating values even when the underlying coating had decayed to 85 to 90. The structural extension below is real but modest, 20 to 40 percent over an un-boosted cycle.
The dollar math: four boosters per year at $30 is $120/year, or $600 over a 5-year cycle. That exceeds the cost of most prosumer DIY 9H coatings on its own. Ceramic coating is a multi-year maintenance regime, not a one-and-done product.
Warranty versus real-world durability
A 5-year warranty is not a 5-year forecast. Three patterns repeat in the fine print.
Annual maintenance is required to keep coverage valid, usually by the original installer at a paid service price. The warranty pays for products and service, not for the chemistry surviving on its own.
Most warranties exclude the failure modes that actually happen: stone chips, scratches from automated washes, water spots, oxidation from un-corrected paint, damage from "improper care." What is covered in practice is delamination from a manufacturing defect, which is rare.
"Lifetime" rarely means permanent. CarPro's warranty writeup notes lifetime coverage typically means annual reapplication at the installer for as long as the vehicle stays in the program. Stop paying, and the warranty stops with it.
Why your coating stopped beading is usually not failure
A coating that stops beading is not the same as one that has died. Most often the surface is contaminated, not degraded. Brake dust, road film, tar, tree sap, bonded iron, and oxidized polish residue all block the hydrophobic film from contacting water. Decontamination usually brings the beading back.
The diagnostic sequence:
- Wash with a pH-neutral car shampoo. If beading returns, the film was alive and just dirty.
- Treat with an iron remover. Bonded iron is the second-most-common culprit.
- Wipe with an isopropanol-based panel wipe on microfiber. Removes residual polish oil.
- Apply a quarterly SiO2 booster. If beading returns and holds, the base coating is still doing structural work.
If beading does not return, the top layer has oxidized and a fresh booster is the right move. Recoating the base is only required after the structural film thins enough that abrasion and chemical resistance drop. A panel that lost contact angle but still feels slick and shows gloss under angled light usually has working coating underneath.
The H-codes on a DIY ceramic kit
The cured film is inert: amorphous silica covalently bonded into a glass-like matrix, not respirable. The uncured product in the bottle is a different exposure.
Typical SDS Section 2 classifications for a consumer DIY 9H kit on an isopropanol carrier:
- H225 (highly flammable liquid and vapour) reflects an isopropanol flash point around 12 to 15 C. Open flame is the relevant exposure pathway.
- H319 (causes serious eye irritation) traces to precursor silanes plus the alcohol carrier. Eye protection follows from that hazard pathway.
- H336 (may cause drowsiness or dizziness) traces to isopropanol vapors. The SDS Section 8 calls for ventilation; in practice a garage door open is the realistic version of that.
- H315 (causes skin irritation) traces to the same silane chemistry. Skin contact is the relevant pathway, which is what gloves address.
Lower-flash solvent blends add H226 (flammable liquid and vapour). Aerosol applicators introduce H335 (may cause respiratory irritation) because droplets can land in the upper airway. A panel-by-panel suede-block application is not the same exposure as an aerosol spray in a closed garage. Some SDS sheets list H317 (may cause an allergic skin reaction) for specific silane crosslinkers; if you see it, gloves shift from optional to required.
The "is silica carcinogenic" question has a chemistry answer. H350 (may cause cancer) applies to respirable crystalline silica (alpha-quartz, cristobalite, tridymite) at occupational dust exposures, per the IARC Group 1 classification. The silica in a cured coating is amorphous and covalently bonded, not respirable crystalline. The uncured liquid is also not a respirable silica exposure: silicon is dissolved as silane molecules, not suspended as crystalline particles.
The PPE translation from these H-codes: eye protection follows from H319, glove use follows from H315, ventilation follows from H336. A respirator is indicated only if the product is aerosol-sprayed in an enclosed space, where H335 applies.
What about graphene, glass, and wheel coatings
Graphene coatings are the same SiO2 chemistry with graphene oxide sheets at low loading. Lab hardness gains (30 to 40 percent) are real; the 7-plus-year claims are not independently verified. The four failure modes apply identically.
Glass coatings use fluorosilane or hybrid silane chemistry on the windshield. Wiper abrasion is the dominant wear mechanism, not UV, which is why glass-coating life is measured in wiper cycles rather than UV years. Pro-installed windshield coatings outlast consumer wipe-on repellents by an order of magnitude on the same vehicle.
Wheel coatings see brake-pad iron and thermal cycling that paint coatings do not. Brake-heat-rated wheel coatings use higher-temperature siloxane chemistry tuned for sustained brake-rotor heat soak. The failure mode is thermal degradation plus iron embedding rather than UV-driven side-group oxidation.
What this all adds up to
The honest math for a coated daily driver:

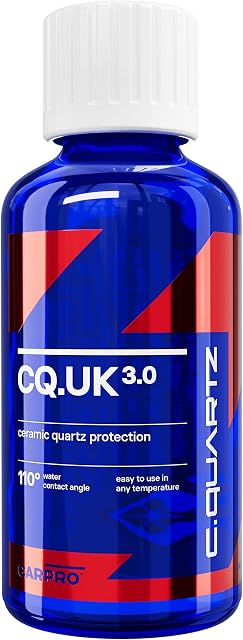

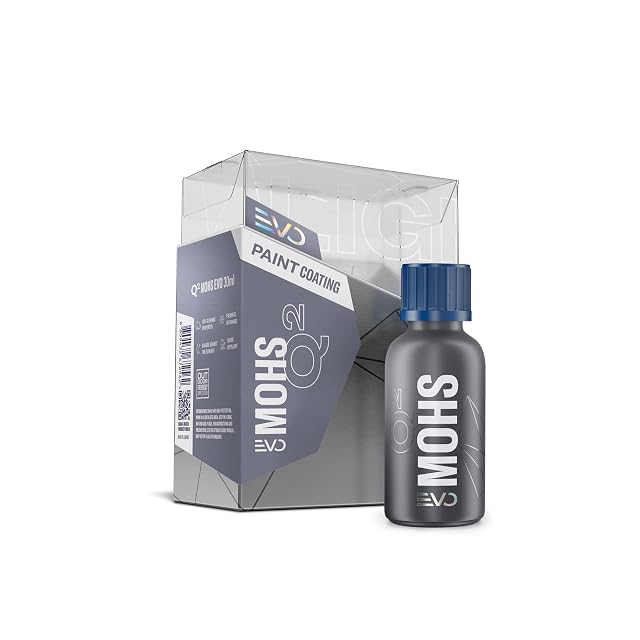

- A prosumer 9H coating like CarPro CQuartz UK 3.0 or Gyeon Q2 Mohs Evo on a garage-parked car with pH-neutral washes and quarterly boosters lands at 4 to 6 years.
- The same coating on an outdoor daily driver with brush washes lands at 1 to 2 years.
- A consumer DIY 9H kit on the outdoor brush-wash use case is six to twelve months.
- A spray-on "ceramic" topper is a 1 to 6-month booster, never a 5-year coating no matter what the marketing says.
The number on the box is the lab ceiling. The number you live with is the chemistry of how the coating meets the climate, the wash chemistry, and the parking environment. Prep, neutral wash pH, drying technique, and quarterly booster cadence are the four levers the field data identifies as the difference between the lab number and lived-in field life.
