Water spots are not one problem. They are three problems, and the chemistry that fixes the easy one will make the hard one worse. Step one is identifying the tier. Step two is matching the chemistry to it.
The three severity tiers in 60 seconds
Detailers and the OEM coatings labs converge on the same three-tier model. The differences are about how deep the damage has reached into the clearcoat, not about how the water dried.
| Tier | What it is | How to confirm | What removes it |
|---|---|---|---|
| Type 1: Surface mineral | A chalky ring of calcium carbonate sitting on top of intact clearcoat | Wipes partly off with a wet microfiber; lifts fully with a mild acid in 30 to 60 seconds | Mild acid spray (acetic, citric, oxalic blend), rinse, dry |
| Type 2: Shallow etch | Hydrolysis has eaten a shallow crater into the top few microns of clearcoat | Survives acid wipe but you cannot catch it with a fingernail; visible under angled light | DA polisher with a cutting compound, then a finishing polish |
| Type 3: Deep etch | Hydrolysis has reached far enough that polishing it out would expose basecoat | Fingernail catches the rim; visible halo around the spot under angled light | Body-shop refinish, no consumer-level fix |
Misidentifying a Type 1 as Type 2 grinds off clearcoat that the chemistry alone would have left intact. Misidentifying a Type 3 as Type 2 polishes into basecoat and converts a cosmetic problem into a repaint. The diagnostic ladder runs from least invasive to most: wet microfiber first, mild acid second, fingernail test third. The lift happens as soon as the chemistry matches the tier.
The chemistry of mineral deposition
Tap water carries dissolved minerals at concentrations measured in milligrams per liter of calcium carbonate equivalent. The U.S. Geological Survey classifies water as soft below 60 mg/L, hard above 120, very hard above 180. Limestone aquifers (Midwest, Southwest, Florida) carry the highest hardness; granite regions like New England and the Pacific Northwest sit on the soft end.
The mineral that leaves the visible spot is calcium carbonate (CaCO3) with smaller amounts of magnesium carbonate. The carbonate equilibrium that keeps calcium dissolved as soluble calcium bicarbonate shifts when the water loses CO2, and the calcium drops out as solid carbonate.
Ca(HCO3)2 (aq) <-> CaCO3 (s) + H2O + CO2 (g)
Heat drives this shift faster. Calcium carbonate has retrograde solubility, meaning it gets less soluble as temperature rises. On a sun-warmed hood, a droplet loses both water and CO2 at the same time, and the minerals crash out faster than in cold water.
The ring shape is geometry. Surface tension pins the droplet edge while the center evaporates first, so dissolved minerals migrate outward and pile up at the rim. The same edge-concentration effect drives acid-etch damage: an acidic co-contaminant (acid rain, bird excrement, bug residue) concentrates at the rim during the final moments of evaporation and reaches a far higher local concentration than the bulk droplet ever had. That is why etch rings trace the perimeter of the original drop.
In silica-heavy water regions (parts of the Pacific Northwest, Texas, volcanic-soil areas), evaporation leaves amorphous silica alongside the carbonates. Silica deposits bond to the clearcoat (and especially to SiO2-based ceramic coatings) at the interface, so standard acid removers optimized for CaCO3 are far less effective on them.
Type 1 removal: acid and chelator chemistry

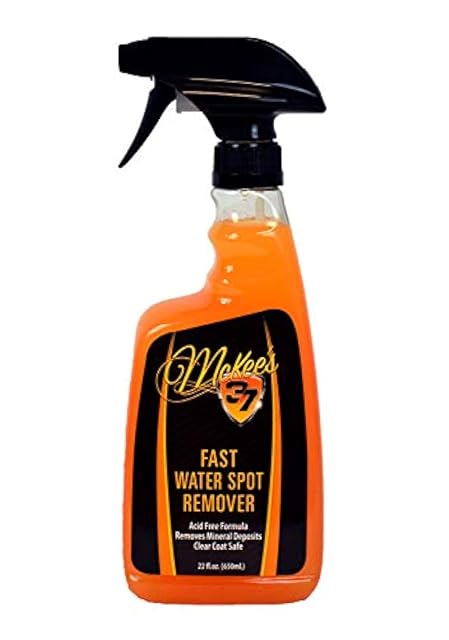

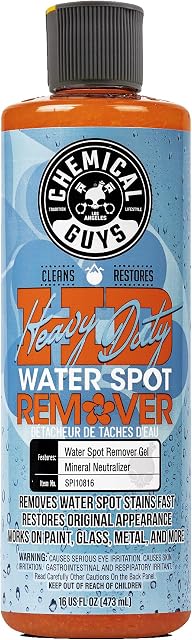

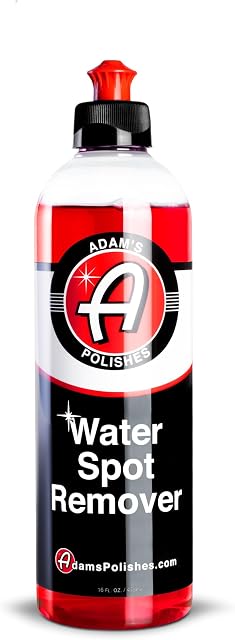

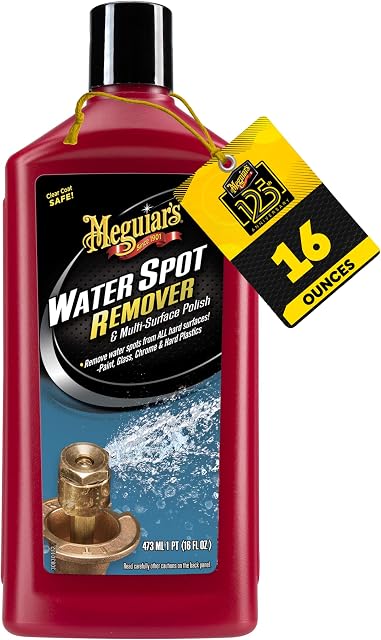

The fast answer: a dedicated mild-acid spot remover on a cool panel, with a 30-to-60-second dwell and a clean rinse, lifts most fresh surface mineral spots without touching the clearcoat under them. The picks below are the water spot remover category leaders by composite score.
All three common consumer acids work by converting insoluble calcium carbonate into a soluble calcium salt that rinses clean. The differences are in strength, speed, and what else they can grab.
Acetic acid, the active ingredient in household vinegar, runs 4 to 8 percent in the bottle. The reaction is the classic chemistry-class one:
CaCO3 (s) + 2 CH3COOH (aq) -> Ca(CH3COO)2 (aq) + H2O (l) + CO2 (g)
The fizz is CO2. The calcium acetate stays in solution and rinses off. Acetic acid is a weak acid (pKa 4.76), so dilution and dwell time matter. A 1-to-1 vinegar-to-water mix on a fresh Type 1 spot with a 30-to-60-second dwell on a cool panel dissolves most fresh deposits in one pass. The same dilution lacks the punch for aged or partially baked deposits.
Citric acid works through two parallel mechanisms. It protonates the carbonate the way acetic acid does, and it also grabs free Ca2+ ions by forming a soluble calcium citrate complex (the chemistry that grabs metal ions out of solution and holds them there). A 5 to 10 percent citric solution removes Type 1 spots faster than vinegar at the same pH.
Oxalic acid is the strongest consumer-safe option and the workhorse for stubborn, baked-on, or iron-contaminated deposits. The oxalate anion grabs both Ca2+ and Fe3+, which is why oxalic-acid cleaners do double duty as iron-fallout removers. Pure oxalic acid carries H302 (harmful if swallowed) and H312 (harmful in skin contact); diluted consumer formulations typically carry H315 (skin irritation) and H319 (serious eye irritation). Nitrile gloves and eye protection follow from those hazard pathways.
Commercial removers blend acids and add a surfactant. CarPro Spotless 2.0 reports a formulated pH near 4 with a proprietary acid blend. The surfactant wets the deposit so the acid reaches the deposit-clearcoat interface faster. Real-world spots are mixtures (mostly CaCO3, with magnesium carbonates, trace silica, sometimes iron oxide), so a blend covers field composition better than a single-acid formula.
A Type 1 remover that matches the chemistry shows a stated pH in the 3 to 4 range on SDS Section 9 and a named acid (oxalic, sulfamic, citric, phosphoric, acetic, or a blend) in SDS Section 3. Hydrogen fluoride and ammonium bifluoride dissolve silica directly, so the same chemistry that lifts a mineral deposit also etches glass and degrades clearcoat; the wheel-acid use case is the only place that chemistry sees a controlled application.
Type 2 correction: polish and DA mechanics for etched paint
Once the deposit has hydrolyzed the clearcoat, the crater is in the resin itself. No chemistry will refill the missing polymer. The fix is to take the surrounding clearcoat down to the crater floor with abrasion.
The reference product is Meguiar's M105 Ultra-Cut Compound. Meguiar's calls the abrasives "ultra-hard non-diminishing," meaning the particles hold their size and shape through the polishing cycle. That separates a modern compound from older diminishing-abrasive (rubbing-compound) chemistry. M105 will remove 1200-grit sanding marks at its strongest, which is more cut than most water-spot etching needs.

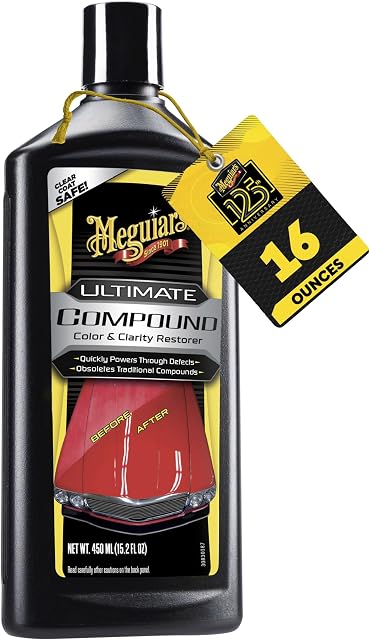

The consumer-grade companion is Meguiar's Ultimate Compound, a less aggressive version of the same abrasive technology for hand or DA application on intact clearcoats with light defects. For shallow water-spot etching, Ultimate Compound on a DA polisher with a light cutting pad is the typical starting point. M105 is the right tool when Ultimate Compound has stopped making progress.

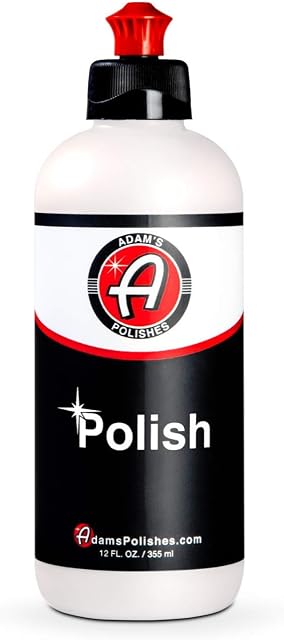

After the cut, a finishing polish refines the haze. Adam's Polishes Paint Finishing Polish and other entries in the finishing polish category pair with the compound to leave a defect-free finish.
Clearcoat on modern OEM paint is 40 to 50 microns total, and the safe lifetime budget is 3 to 5 microns of removal before the clearcoat is too thin to UV-protect the basecoat. Every Type 2 correction subtracts from that budget, which is why prevention chemistry matters more than removal chemistry for paint longevity.
Workflow: the least aggressive pad-and-polish that makes measurable progress is the entry point (light cutting pad, Ultimate Compound, DA on speed 4 to 5, three slow passes with light pressure). Angled LED light shows whether the spot is fading; continued fade calls for a repeat, a plateau calls for stepping up to M105. A finishing pad and polish closes the cycle by clearing the haze the cut leaves behind.
When it is Type 3 (refinishing territory)
A Type 3 spot has hydrolyzed through enough clearcoat that polishing it out would thin the clearcoat to UV-failure level or expose the basecoat. The only repair is a respray. Type 3 is usually a strongly acidic contaminant (acid rain plus prolonged sun on a hot panel, or undiluted industrial fallout overnight), not ordinary tap water.
The diagnostic ladder:
- The spot survived a mild-acid wipe. At minimum a Type 2.
- A fingernail dragged across the spot catches the rim. The crater has real depth.
- Under angled LED light, the spot shows a defined halo that is not just mineral residue.
- A test polish makes the crater visible but does not flatten it.
If steps 2 and 3 both check, stop. Continuing to polish will reach basecoat before it reaches the crater floor. A single spot can sometimes be wet-sanded and spot-repaired for a few hundred dollars; a panel covered in deep etching gets a respray.
Glass water spots: same chemistry, different rules
The picks below are the leaders in the glass water spot remover category.
Glass water spots are the same calcium carbonate chemistry, but the substrate is different. Soda-lime glass is silica plus sodium and calcium oxides; strong bases (pH above 12) and hydrofluoric acid can etch it, but the mild acids in paint water-spot removers do not.
Two practical differences from paint work:
- Aggressive mechanical removal is acceptable on glass. A clay bar, a glass polish like Meguiar's Perfect Clarity Glass Polishing Compound on a wool pad, or fine cerium oxide all work on glass-only deposits. The same approach on paint would scratch the clearcoat.
- Hydrofluoric acid (HF) appears in some legacy glass spot removers and shower cleaners. HF dissolves silica, so it lifts the spot and the glass under it in the same reaction; at consumer concentration it also carries H310 (fatal in skin contact) and H300 (fatal if swallowed), with calcium-bone-binding systemic toxicity. SDS Section 3 listings of "hydrogen fluoride" or "ammonium bifluoride" mark the chemistry class.
Mild-acid spot removers built for paint are safe on glass. The reverse is not always true: a wool pad loaded with cerium oxide will polish glass beautifully and abrade clearcoat off paint. On glass-only surfaces, a 0000 steel wool pad with light pressure and water lifts bonded residue mechanically; the Mohs hardness of steel sits below the Mohs hardness of soda-lime glass, so the steel scrubs the deposit without scoring the substrate.
Prevention: drying, hard-water filters, hydrophobic top coats

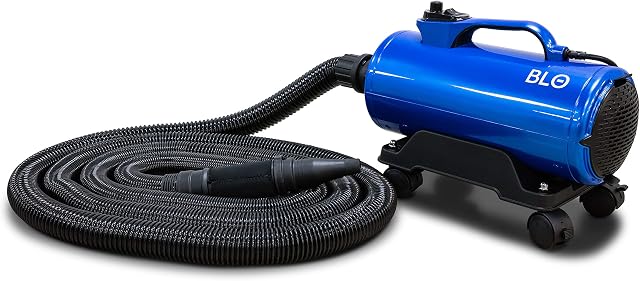

The picks below are the drying tools that move water off the surface in seconds instead of the minutes that air-drying takes.
The strategy is keeping minerals from ever reaching the dried-on stage. Three layers work together.

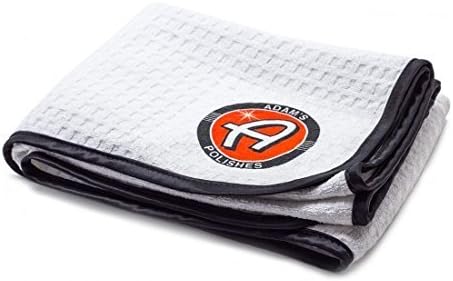

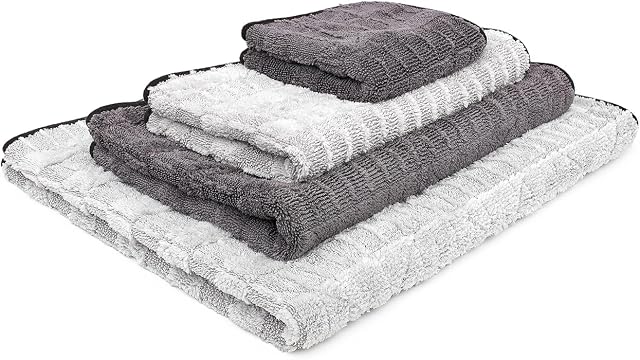

Mechanical drying within minutes. Once the rinse is complete, the clock starts. A plush microfiber drying towel lifts the bulk water in two passes per panel. A forced-air blower clears the geometry where standing water otherwise pools: mirror seams, badge edges, panel gaps. The combination converts a several-minute evaporation window into a seconds-long mechanical-removal window. Air-drying gives every dissolved mineral the maximum opportunity to deposit.

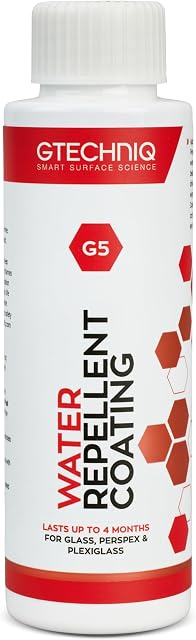

Hydrophobic top coats. The picks below are the SiO2 sprays and glass water-repellents (including silane wipe-on products like Aquapel Glass Treatment) that push contact angle high enough to make beads roll off.
A waxed, sealed, or ceramic-coated clearcoat has lower surface energy than bare clearcoat, which means a higher water contact angle. Bare clearcoat sits at 70 to 85 degrees; carnauba pushes past 90; modern ceramic coatings hit 100 to 120. Above 90 water beads; above 100 the beads roll off under their own weight.
Hard-water filters and deionized water. A deionizing cartridge swaps the dissolved calcium, magnesium, and sodium out of tap water for hydrogen and hydroxyl ions (which combine to form more water). The resulting rinse has total dissolved solids near 0 ppm and evaporates clean. A portable cartridge on the final rinse only (10 to 15 gallons per wash) is the home approach. Below 60 mg/L hardness the deionizer is overkill; above 180 mg/L it pays for itself in the panels it saves from polishing.
A pH-neutral car shampoo preserves whatever wax, sealant, or coating is already on the paint. An alkaline pH above 9 degrades that layer over time.
Common mistakes
Most spot trouble comes from the wrong tool at the wrong tier.
Vinegar straight on a hot panel. Acetic acid sitting on warm clearcoat for several minutes can over time hydrolyze the same melamine crosslinks acid rain attacks; the chemistry favors a cool panel, shade, a 1-to-1 or 1-to-3 dilution, short dwell, and a thorough rinse.
Reaching for the compound before trying chemistry. A Type 1 deposit lifts with a weak acid in 30 to 60 seconds, removing zero clearcoat. Compounding the same spot subtracts microns from the 3-to-5 micron lifetime budget that cannot be replaced. The chemistry-first path is the lower-clearcoat-cost path; abrasion is the fallback once chemistry has failed and the spot is confirmed etched.
Washing in direct sun on a hot panel. Shampoo evaporates before it can be rinsed, rinse water flashes off in patches, and the retrograde-solubility chemistry runs harder. A cool panel in shade keeps the calcium dissolved long enough for the rinse to carry it off.
Air-drying after a tap-water rinse. Every dissolved mineral gets maximum time to deposit. A deionized rinse leaves a near-zero-TDS film that air-dries clean; tap-water rinses do not.
Skipping protection between corrections. A freshly polished panel with no wax, sealant, or coating sits at its lowest-ever contact angle. The clearcoat is exposed until a top coat goes back on, so the window before protection is reapplied is the highest-risk window for new deposition.
How to read a water-spot remover SDS in 60 seconds
A Safety Data Sheet is 16 sections long, but for a water-spot remover only four matter.
Section 2 (Hazard identification). Common codes are H315 (skin irritation), H319 (serious eye irritation), and sometimes H302 (harmful if swallowed) on stronger acid blends. H318 (serious eye damage) is rarer and means the concentrate genuinely needs eye protection. H334 (asthma-style reactions on repeat exposure) is unusual on this category; if you see it, that is a flag.
Section 3 (Composition). Oxalic, citric, acetic, phosphoric, sulfamic, and blends are consumer-typical and work on calcium carbonate. Hydrogen fluoride and ammonium bifluoride are silica-dissolving wheel-acid chemistry; the same reaction that lifts brake dust on a wheel etches glass and degrades clearcoat on a painted panel.
Section 8 (Exposure controls). Generic "ensure adequate ventilation" is boilerplate. Specific splash-goggle and nitrile-glove calls on a product that also carries H315 plus H319 in Section 2 are the chemistry catching up to the boilerplate; the PPE tier tracks the H-codes, not the prose.
Section 9 (Physical and chemical properties). The pH. Most paint-safe water-spot removers land at pH 2 to 4. Below pH 1 dwell time matters more. Above pH 6 the product probably is not doing enough acid work to lift bonded spots.
DANGER on a water-spot remover bottle is typically driven by eye-irritation chemistry in the concentrate, not by toxic-inhalation hazards. Eye-irritation chemistry (H318 or H319 on the concentrate) is what the PPE tier reflects; nitrile gloves and splash-rated eye protection follow from those hazard pathways. Respiratory protection is not warranted for the aqueous mild-acid class because no respiratory H-code (H334/H335/H330/H331) shows up at use concentration.
The CarCareTruth scoring lens
Every product on this site carries a Health Score derived from its SDS. The score weighs the H-codes that actually show up at concentration, not boilerplate Section 8 language. A water-spot remover with H315 (skin irritation) and H319 (eye irritation) on the concentrate but no respiratory codes scores in the moderate-to-strong range; nitrile gloves and eye protection are the PPE translation of those two H-codes. A product carrying H334 (respiratory sensitization) or H318 (serious eye damage) on the concentrate takes a stronger health-score penalty and the PPE tier rises with it.
The water spot remover category sorts every cataloged product by that score. The glass water spot remover category does the same for glass-specific formulas. The compound and finishing polish categories are the corrective work for Type 2 etching. The drying towel and hybrid ceramic spray categories are the prevention stack.
How this fits with the rest of the wash routine
Water-spot prevention is one layer of a larger maintenance question. Three sibling guides cover the layers that touch this one:
- How often should you actually wash your car: wash cadence is the upstream variable, and longer intervals between washes give every droplet more chances to evaporate on the panel.
- How long does ceramic coating actually last: water-spot etching from hard water and acid rain is one of the four documented failure modes for ceramic coatings, and the same chemistry covered here explains why.
- Ceramic coating vs wax vs sealant: which lasts longest: the protection-layer chemistry behind the contact-angle numbers in the prevention section above.
Water spots are a chemistry problem with a chemistry answer. The deposit is calcium carbonate. The dissolving chemistry is a mild acid. The crater, when there is one, is hydrolyzed clearcoat and needs abrasion. The prevention is geometry: keep water from sitting on the panel long enough to evaporate. Match the chemistry to the tier and the paint stays intact.
:::
