Last verified: May 2026.
The 2nd-generation Toyota Tacoma covers model years 2005 through 2015. Across that window, Toyota shipped two engines: the 2.7L 2TR-FE 4-cylinder and the 4.0L 1GR-FE V6. Both burn oil under specific conditions, but the why and the fix are different for each engine. Owners who chase consumption with a thicker oil without diagnosing the underlying failure often spend money for nothing, void the OEM spec, or worse, mask a real piston-ring problem until the engine grenades.
This guide reads the two engines separately, walks through the diagnosis order Toyota dealers actually use, and recommends specific motor oils where the catalog supports it. Where it does not, we say so.
The two-engine reality, in 60 seconds
| Engine | Years | Displacement | Toyota OEM viscosity | Consumption failure mode |
|---|---|---|---|---|
| 2TR-FE | 2005-2010 | 2.7L I4 | 5W-30 | Rare. Carbon in ring lands on city-driven trucks. |
| 2TR-FE | 2011-2015 | 2.7L I4 | 0W-20 | Common past 100k. Low-tension piston rings + carbon. |
| 1GR-FE | 2005-2015 | 4.0L V6 | 5W-30 | Past 100k: valve-cover gasket weep, cam-tower seam, PCV gumming. |
Two patterns, two fixes. The shared rule: do not change the oil weight before you change the spark plugs and check the PCV valve, because most of what gets blamed on consumption is actually a PCV system that stopped breathing.
Toyota OEM viscosity, by year and engine
Toyota's published owner-manual viscosities for the 2nd-gen Tacoma look like this:
| Model years | 2.7L 2TR-FE | 4.0L 1GR-FE |
|---|---|---|
| 2005-2010 | 5W-30 (5W-20 acceptable at moderate temperatures) | 5W-30 |
| 2011-2015 | 0W-20 | 5W-30 |
The 2011 model year is the inflection point on the 4-cylinder. Toyota dropped the 2TR-FE specification from 5W-30 down to 0W-20 to hit the CAFE 2012-2016 fuel-economy standards finalized by EPA and NHTSA in April 2010. Lower viscosity at operating temperature reduces hydrodynamic pumping losses inside the engine, freeing a quantifiable amount of brake horsepower that translates directly to better EPA test-cycle mileage. The catch: low-viscosity oil films are thinner at the piston-ring interface, and Toyota also relaxed the ring tension on the new pistons to reduce friction further. Those two changes compound when the engine ages.
The 1GR-FE V6 never got that treatment. Across all 11 years of 2nd-gen production, the 4.0L spec stayed 5W-30 (ILSAC GF-3 in early years, GF-5 from 2010, with GF-6 and API SP backward-compatible for current refills).
Why 2TR-FE 4-cylinders burn oil
The 2011-and-later 2.7L is the engine most 2nd-gen owners are searching about when they look up Tacoma oil consumption. The failure pattern is consistent enough to be predictable:
- Oil consumption begins between 80,000 and 130,000 miles
- Typical rate: one quart every 1,500 to 3,000 miles, getting worse over time
- Blue smoke on cold-startup or under heavy throttle past 3,500 rpm
- Compression usually still within spec; leakdown reveals ring-land bypass
- Spark plugs on cylinders 2 and 3 oil-foul first
The mechanism is two-part. First, Toyota's low-friction piston design ran low-tension oil-control rings that depend on a thin, well-pressurized oil film to seal. With 0W-20 in spec, the film at operating temperature is already at the edge of what mass-produced rings can hold. Second, the EGR system and PCV system both feed crankcase blow-by and exhaust gases back through the intake, and over time that residue cooks into a hard varnish that fills the gaps behind the piston rings (the "ring lands"). When those lands fill with carbon, the rings cannot move outward against the cylinder wall the way they were designed to. They stop sealing. Oil that should be wiped down on the exhaust stroke is dragged up into the combustion chamber and burned.
There is no published Toyota TSB that targets the 2TR-FE oil consumption pattern directly. The closest documented response Toyota ever wrote is the 2AZ-FE family TSB (T-SB-0094-11 on the Camry, RAV4, and Scion 2.4L) for the same low-tension-ring failure mode. Toyota dealers and independent technicians commonly apply the same yardstick to 2TR-FE complaints, since the engineering pattern is parallel:
- Measure the consumption rate. Mark the dipstick, top off to full, drive 1,200 miles, measure how much oil it took to refill to full.
- If consumption exceeds one quart per 1,200 miles, that is the 2AZ-FE warranty threshold Toyota used. Whether your dealer accepts that yardstick for a 2TR-FE complaint depends on the dealer and your warranty status. Most 2nd-gen Tacomas are now out of warranty.
- Out-of-warranty options: a top-end carbon clean using a solvent like Sea Foam or BG 44K, switching to a high-detergent full-synthetic 0W-20, or a piston-ring service that runs $2,500 to $4,500.
The honest catalog gap
CarCareTruth scores roughly 1,200 products. As of this writing, we carry zero motor oils in 0W-20 viscosity. The 4-cylinder 2010+ Tacoma owner who walks onto this page deserves a straight answer, not an upsell to the wrong oil.
What to look for in any 0W-20 if you are buying today: API SP rating and ILSAC GF-6A certification (those are the current Toyota-required specs). A dexos1 Gen 3 license is GM's premium-formulation mark and is not required by Toyota, but it is a positive quality signal on any consumer-grade 0W-20. Toyota Genuine Motor Oil 0W-20 in the US is supplied by ExxonMobil for the dealer service-fill program and is what your service writer drains in at every change. Strong detergency is the key spec, not viscosity. The oils that historically test well on detergent additive packages: Mobil 1 Extended Performance 0W-20, Valvoline Advanced Full Synthetic 0W-20, AMSOIL Signature Series 0W-20, Castrol Edge 0W-20. None of these have CCT health/safety scores yet. Once they are in catalog we will update this section with the scored picks.
Why "just put 5W-30 in it" is the wrong answer
The most common forum-thread advice for a 2011+ 2TR-FE that is burning oil is to switch to 5W-30. It is tempting because the older 2.7L specced 5W-30, and the thicker film at hot temperatures will, in fact, reduce consumption past worn rings. But:
- It is outside Toyota's stated viscosity range for the engine, which voids your right to file a warranty claim and may complicate any future powertrain dispute
- The cold-start grade (the first number, "5W") affects oil-pump pickup and lifter feed at low temperatures; 0W is engineered for that engine's oil pump
- It reduces fuel economy by about 1 to 2 percent at steady cruise
- It does not fix the underlying ring-land carbon issue; it just makes it less visible
If your truck is out of warranty and you have measured consumption above one quart per 1,500 miles and you have already done a top-end clean and the consumption persists, then a Toyota dealer or an experienced independent mechanic moving you to 0W-30 is a defensible decision. 5W-30 in a 0W-20 engine is the wrong tool by two grades.
Why 1GR-FE V6s burn oil
The 4.0L V6 in the 2nd-gen Tacoma is a different story. It is one of the most reliable engines Toyota ever built. Owners report 250,000 to 350,000 miles on the original short block as routine. When a 1GR-FE burns oil, it is almost never the piston rings. It is one of three things:
- Valve-cover gasket weeping. The rubber gasket between the valve cover and the cylinder head hardens past 100,000 miles and starts seeping oil down the outside of the engine. The truck looks like it is burning oil but is actually leaking it. Smell test: if you smell hot oil after a highway run but see no blue smoke, this is your problem.
- Cam-tower seam leak. Where the cam-housing castings meet the cylinder head, Toyota used FIPG (form-in-place gasket, basically a sealant bead) rather than a separate gasket. The FIPG cracks past 150,000 miles. This is a labor-heavy fix because the cam towers carry the camshafts.
- PCV valve gumming. The PCV valve manages crankcase pressure by routing blow-by gases back through the intake. A gummed-up PCV creates positive crankcase pressure that pushes oil past every seal in the engine. The fix is a $20 part and 15 minutes of work. Always check this first.
The cam-tower seam leak is the most-discussed of the three on Tacoma owner forums for the 1GR-FE. Toyota service info documents the FIPG bead as a known service item past about 150,000 miles, though there is no public-facing Toyota TSB campaign that names the 2nd-gen Tacoma specifically. If your truck is well past the 100k mark and you see oil seeping along the cam carrier, ask your dealer to inspect rather than assuming a covered repair.
Full synthetic vs high-mileage: which one when
For a stock 2nd-gen with the V6 under 100,000 miles, a standard full synthetic 5W-30 is the right oil. The base stocks are mostly Group IV PAO (polyalphaolefin) and Group III hydrocracked stocks, both of which carry better thermal stability and oxidation resistance than the conventional Group I and II stocks. That matters in the Southwest and in towing duty.
Past 100,000 miles, the calculation changes. High-mileage formulations add three things the standard versions do not:
- Seal conditioners. Esters and other polar molecules that swell aged rubber, slowing the weep at valve covers, oil-pan gaskets, and crank seals.
- Slightly higher operating viscosity. Most high-mileage 5W-30s land at the upper end of the SAE J300 30-grade range at 100°C (typically 11.5 to 12.5 cSt vs 10.5 to 11.5 cSt for a standard 5W-30). The thicker hot film masks small consumption losses.
- Higher ZDDP levels in some formulations. Zinc dialkyldithiophosphate is the classic anti-wear additive. API SP caps phosphorus between 600 and 800 ppm on the resource-conserving viscosity grades to protect catalytic converters; some high-mileage formulations run closer to the 800 ppm ceiling than standard formulations do.

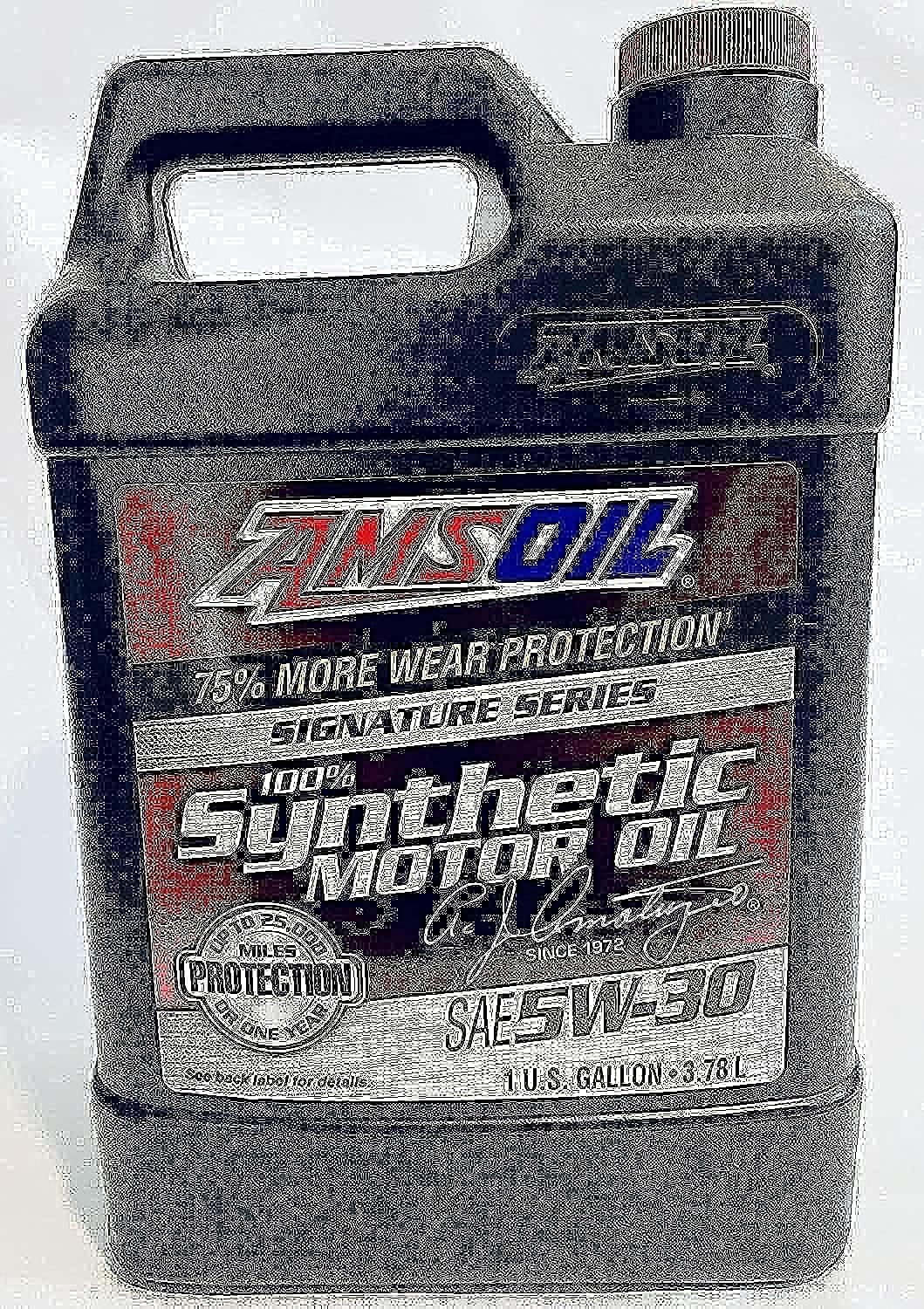

For a Tacoma V6 past 100,000 miles, the high-mileage versions of the same brand are usually a better fit. The trade-off: you give up a fraction of a fuel-economy point and the long-drain capability of a premium synthetic like AMSOIL Signature Series.
The diagnosis order Toyota dealers actually use
Before you change oil brands or weights, run through this list. Most "oil consumption" problems on 2nd-gen Tacomas are not piston rings.
- Check the PCV valve. Pull it, shake it, listen for the rattle. If it does not rattle, replace it. $15 part, 15 minutes of work. Skipping this step has cost owners $3,000 ring jobs that fixed nothing.
- Inspect the spark plugs. Pull all of them. Oil-fouled plugs (wet, black, oily soot) on cylinders 2 and 3 specifically on a 2TR-FE point to ring-land carbon. Oil-fouled plugs across all 6 on a 1GR-FE point to valve-stem seals or rings (rare).
- Look at the underside of the truck and the valve cover. Wet, oily film along the valve-cover gasket line on the V6 is a gasket weep, not consumption. The truck is leaking, not burning.
- Smell test after a highway run. Hot-oil smell with no blue smoke = external leak. Blue smoke from the tailpipe = internal consumption.
- Run a 1,000-mile oil-consumption measurement. Mark the dipstick, top to full, drive normally, measure refill. If the rate exceeds one quart per 1,200 miles, escalate to a compression and leakdown test.
- If compression is within spec but leakdown shows ring-land bypass on the 2TR-FE, you have the carbon-fouling pattern. Two options: solvent top-end clean (cheap, sometimes works) or piston-ring service (expensive, definitive).
The "switch oil brand and see what happens" approach skips every diagnostic step and almost never produces a real answer. Diagnose first, medicate second.
What to put in the crankcase, by use case

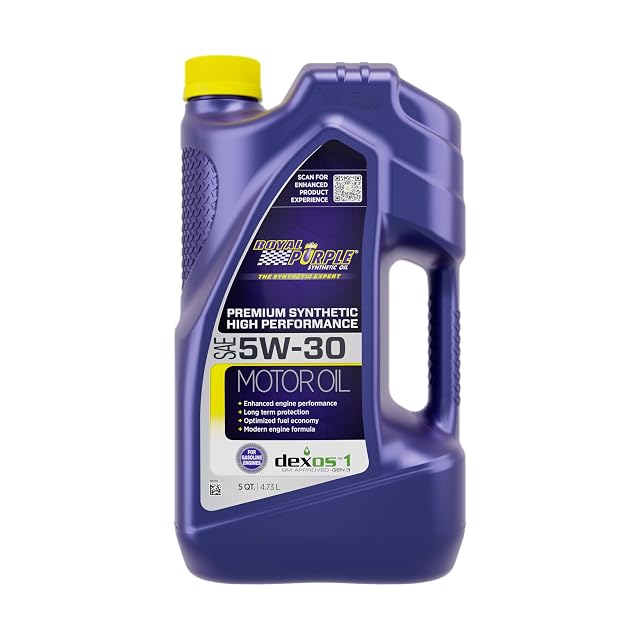

For a 2005-2010 2.7L 2TR-FE (5W-30 spec):
For a 2011-2015 2.7L 2TR-FE (0W-20 spec):
CarCareTruth does not yet carry scored 0W-20 oils. Use Toyota Genuine 0W-20 from your dealer, or any major-brand 0W-20 that carries API SP and ILSAC GF-6A. This page will be updated when the catalog fills.
For a 2005-2015 4.0L 1GR-FE V6 under 100k:
For a 2005-2015 4.0L 1GR-FE V6 past 100k:
For a tow-rig or hot-climate V6:
When to walk it into a shop
A few patterns are not DIY-fixable on the home-detailer driveway:
- More than one quart per 1,000 miles on a 2011+ 2.7L. Past this threshold, the ring-land carbon is no longer something a solvent clean can reach. You are looking at a piston-ring service or a long-block.
- Blue smoke on every cold start that does not clear within 30 seconds. Valve-stem seals on the V6 are a real failure mode past 200,000 miles. Fixable with the cylinder head on the truck if you have a compressor and the right adapter, but most owners hand this one to a shop.
- Oil pressure light at idle when hot. Almost always a worn oil-pump rotor or a gummed-up pickup screen, not consumption. Drop the pan, inspect the screen. Cheap fix if caught early.
- Coolant in the oil or oil in the coolant. Head-gasket failure on a 1GR-FE is rare but happens. Different problem set entirely.
The 2nd-gen Tacoma is one of the more durable mid-size pickups Toyota has ever shipped. The oil-consumption stories are real on a subset of trucks, but they are not random and they are not unfixable. Diagnose first, match the oil to the spec, and the truck usually pays you back with another 100,000 miles.
For broader maintenance context, the motor-oil category page collects all CCT-scored oils with their health, environment, and quality breakdowns. The oil-filter category is the other half of the conversation, and using a premium oil with a budget filter is a familiar mistake.
