TL;DR Dual-substrate Fe/NFe coating thickness gauge with automatic substrate recognition; reads both steel and aluminum body panels, with the substrate icon shown on the LCD for each measurement. Ships with Fe and NFe zero plates and four calibration foils (50, 101, 500, 997 µm) for self-verification, a genuine kit advantage over budget gauges with no calibration aids. Manufacturer-stated ±3 µm accuracy is not independently corroborated in the sources reviewed; owner reception on Amazon is modest, good but not great.

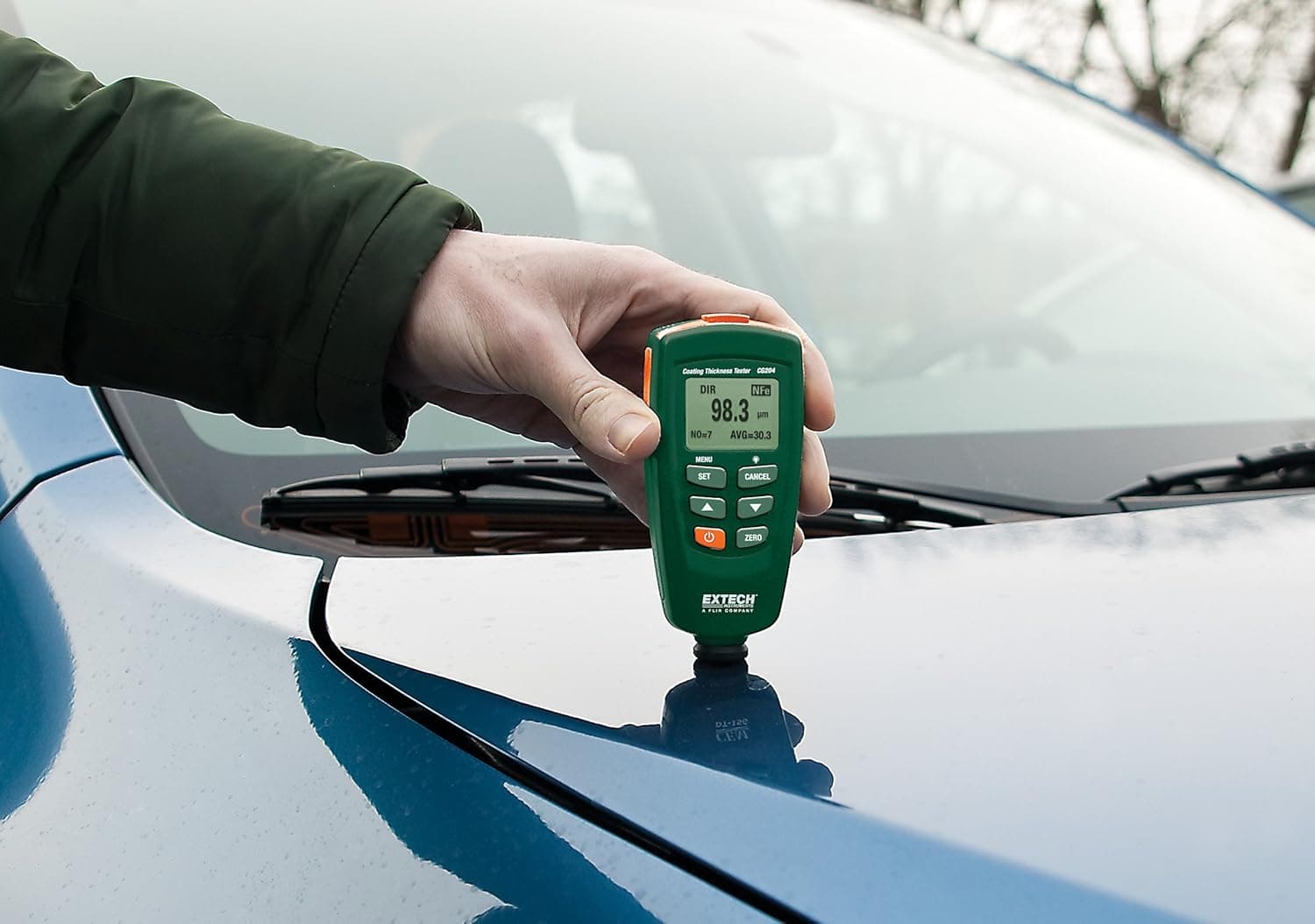

The Extech CG204 is a dual-substrate coating thickness tester from Teledyne FLIR's Extech sub-brand. Automatic Fe/NFe substrate recognition (magnetic induction for steel, eddy current for aluminum) is confirmed from the on-screen substrate icon visible in product imagery on a vehicle hood. Range is 0 to 1000 µm with 0.1 µm resolution. The kit includes an Fe zero plate, an NFe zero plate, and four calibration foils at 50, 101, 500, and 997 µm for single- and multi-point self-calibration. A backlit LCD shows the reading, the substrate icon, the count, and a running average. 255 readings are stored on-device, with mini-USB data export to Windows software on the included CD. The fixed probe has a shrouded V-tip; the housing is ABS with a rubberized side grip; power is 2 AAA alkaline cells. Manufacturer accuracy of ±3 µm is a label claim. No independent bench test against a Defelsko or Elcometer reference instrument has been located.
Right pick for a used-car buyer or detailing-shop operator who needs dual-substrate auto-detection on modern mixed-panel vehicles (F-150, Audi, BMW i-series) at the prosumer tier, with a real calibration-foil kit for on-site verification between sessions. The Teledyne FLIR parent enables ongoing calibration service for instruments returned for periodic verification, which extends the tool's useful life beyond the original purchase. Skip it if the workflow requires an ISO 17025 traceable calibration certificate for body-shop estimating or insurance documentation, since that tier requires a Defelsko Positector 6000 or Elcometer 456 and the price step that comes with it. Skip it also if a Bluetooth smartphone app for data sharing is the priority; the CG204 exports via mini-USB to a Windows CD-installed application, which is functional but a friction point on modern hardware.
No chemical exposure pathway. Paint thickness gauges are handheld measurement instruments with no operating emission, no consumable, and no chemistry, so the health score reflects the tool baseline of 9.5. Power is 2 AAA alkaline batteries, replaceable, with disposal via Call2Recycle or retail drop-off. Teledyne FLIR's calibration service for returned instruments is a real environmental signal that extends the tool's useful life beyond the original purchase, though no formal take-back, refurbishment-and-resale program, or third-party environmental certification is documented for this product line.
Yes. The CG204 carries automatic Fe/NFe substrate recognition · it identifies whether the panel under the probe is ferrous (steel) or non-ferrous (aluminum) and switches measurement modes automatically. The substrate icon (Fe or NFe) is displayed on the LCD with each reading so the user knows which mode produced the number. Independent F-150 or Audi-panel community bench tests have not been located in current sources, so the auto-detect behavior is treated as a strong manufacturer claim rather than an independently verified outcome.
The kit ships with an Fe zero plate, an NFe zero plate, and four calibration foils at 50, 101, 500, and 997 µm (±1% tolerance), along with a mini-USB cable, Windows PC software on CD, and a soft belt pouch. The four foils cover the factory paint range (typically 100·150 µm) and the repaint-thickness range (200+ µm) most automotive inspectors care about.
The CG204 sits in the prosumer tier. The Defelsko Positector 6000 carries an ISO 17025 traceable calibration certificate, a replaceable probe, and a documented manufacturer calibration program; it is the category benchmark and prices accordingly. The CG204 covers the same dual-substrate auto-detect function with a calibration-foil kit at a fraction of the cost, suitable for used-car inspection and detailing-shop documentation where a traceable certificate is not required for the workflow.
Not in the sources reviewed. The ±3% or ±3 µm specification is the manufacturer's stated accuracy; no detailing-forum bench test against a reference instrument or third-party ISO 17025 traceable calibration certificate has been located. Treat the spec as a strong manufacturer claim with kit-provided self-verification (the included calibration foils) rather than as an independently corroborated number.
Yes. Teledyne FLIR (Extech's parent) offers calibration service for instruments returned for periodic verification. The user-replaceable Fe and NFe zero plates plus the four calibration foils also support on-site self-verification between formal calibrations.
Marketing copy from Extech Instruments, via Amazon. Not editorial.
Weekly pick
One product, one safety verdict, every week. No spam.
ERAY

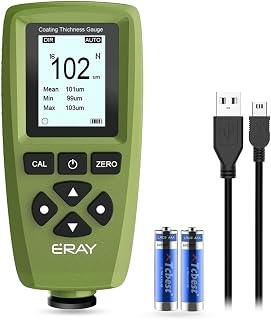

Paint Thickness Gauge with Backlit LCD and USB Export
