TL;DR Dual-substrate Fe/NFe coating thickness gauge with automatic substrate recognition, magnetic induction for steel and eddy current for aluminum, with the substrate icon shown on the LCD for each measurement. Ships with an Fe zero plate and five calibration foils (48.3 to 1000 µm) covering the full factory-paint and repaint range. On-screen mean, min, and max statistics; 320-reading memory across four groups; user-settable alarm limits; USB export to Windows PC software. Well-reviewed since 2017, a solid community signal for the consumer-storefront tier. Manufacturer ±3 percent accuracy is not independently corroborated.

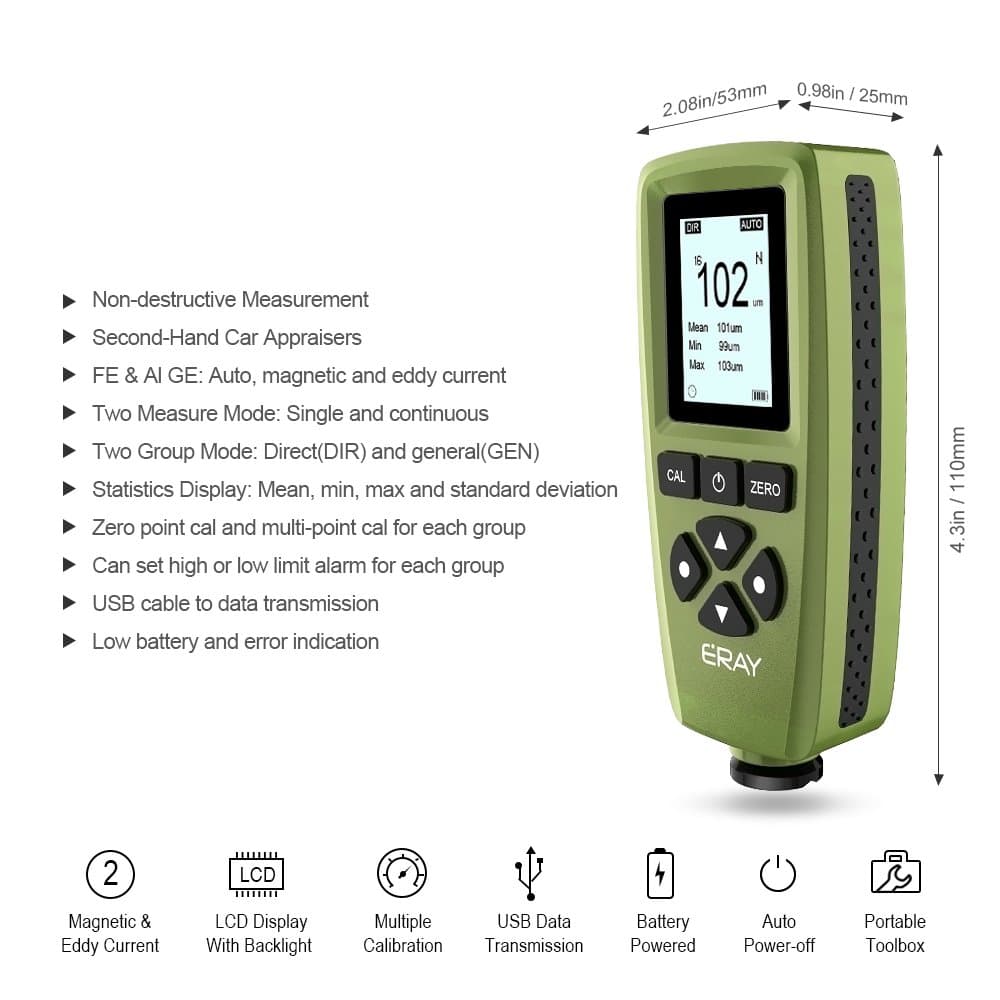

The ERAY paint thickness gauge is a consumer-tier dual-substrate instrument. Automatic Fe/NFe substrate recognition (magnetic induction for ferrous, eddy current for non-ferrous) is confirmed from manufacturer feature bullets and the on-screen F or N substrate icon visible in product imagery. Range is 0 to 2000 µm with 0.1 µm resolution. The kit ships with an Fe zero plate and five calibration foils at 48.3, 100, 245, 498, and 1000 µm for zero and multi-point self-calibration. A backlit segment LCD shows the current reading along with mean, min, and max statistics simultaneously. 320 readings are stored across four groups of 80, with user-settable high and low alarm limits per group. Data export is via mini-USB to Windows PC software on the included CD. Power is 4 AA alkaline cells. Manufacturer ±3 percent accuracy is a label claim; no independent bench test against a Defelsko or Elcometer reference instrument has been located.
Right pick for a used-car buyer, mobile inspector, or detailing-shop operator who needs dual-substrate auto-detection on modern mixed-panel vehicles (F-150, Audi, BMW i-series) at the consumer-tier price point, plus the multi-point calibration foil set for on-site verification and the four-group memory with alarm limits for documenting panel-by-panel inspection runs. Well-reviewed by owners since 2017, it carries the strongest community signal in this price tier. Skip it if the workflow requires an ISO 17025 traceable calibration certificate for body-shop estimating or insurance documentation, since that tier requires a Defelsko Positector 6000 or Elcometer 456 and the price step that comes with it. Skip it also if a manufacturer calibration-service program for periodic verification is a priority; ERAY routes support through the Amazon seller channel, not a dedicated metrology-brand service infrastructure.
No chemical exposure pathway. Paint thickness gauges are handheld measurement instruments with no operating emission, no consumable, and no chemistry, so the health score reflects the tool baseline of 9.5. Power is 4 AA alkaline batteries, replaceable, with disposal via Call2Recycle or retail drop-off. No manufacturer calibration-service or take-back program is documented; the device itself is standard e-waste at end of life. The 24-month replacement warranty per the manufacturer feature bullet is a longer coverage window than typical for the consumer-storefront tier.
Yes. The gauge carries automatic Fe/NFe substrate recognition using magnetic induction for ferrous (steel) panels and eddy current for non-ferrous (aluminum) panels. The substrate icon (F or N) is displayed on the LCD with each reading so the user knows which mode produced the number. Independent F-150 or Audi-panel community bench tests have not been located in current sources, so the auto-detect behavior is treated as a strong manufacturer claim rather than as an independently verified outcome.
An Fe zero plate plus five calibration foils at 48.3, 100, 245, 498, and 1000 µm (±1% tolerance) for zero and multi-point calibration. This is a more complete calibration set than most consumer-tier gauges, which typically ship with one or two foils. The foil set covers the factory paint range (typically 100 to 150 µm) and the repaint-thickness range (200+ µm) that automotive inspectors evaluate.
Yes. A mini-USB cable and a Windows PC software CD are included for downloading and analyzing stored readings. The manufacturer documentation lists compatibility with Windows XP, Vista, 7, 8, and 10. There is no smartphone app, and the CD-distributed software is a friction point on modern computers without optical drives; the install file may also be available via the manufacturer's listing channel.
Each of the four reading groups supports a user-settable high and low limit. When a measurement falls outside the configured range, the gauge displays an alarm icon on the LCD. This is useful when documenting a panel against an expected factory thickness band, for example flagging any reading above 200 µm during a used-car inspection to identify possible repainted areas.
Both are dual-substrate Fe/NFe auto-detect gauges in the prosumer tier. The ERAY has a larger memory (320 versus 255 readings), on-screen alarm limits, and a stronger community signal, well-reviewed by a larger owner base than the more thinly reviewed Extech. The Extech CG204 has the backing of Teledyne FLIR for calibration services, which extends the tool's useful life and is a real environmental signal. Neither has an independent third-party calibration certificate; both should be treated as manufacturer-claim accuracy with kit-provided self-verification.
