The short answer: pick by water source first, then by living situation. If you already own a pressure washer, a foam cannon is a 35 to 80 dollar add-on that produces dense, clinging foam with a five-to-ten-minute panel dwell. If you only have a garden hose, a foam gun makes thinner foam at spigot pressure. If you have neither (apartment, condo), a pump sprayer like the iK Foam Pro 2 puts foam on the panel with two gallons of water from the kitchen sink. All three carry the same soap; what changes is the pressure that turns the soap into foam.
The three tools at a glance
Water source first, dwell-time winner second. The pressure-washer cannon makes the densest foam and the longest panel dwell; the foam gun runs at garden-hose pressure with thinner foam; the pump sprayer needs no hose at all and trades a smaller tank for the no-outdoor-water use case.
| Tool | Water source | Working pressure | Foam thickness | Panel dwell | Setup cost |
|---|---|---|---|---|---|
| Foam cannon (PW-mounted, MTM Hydro PF22 reference) | Pressure washer | 1,100 to 5,000 PSI, 1.4 to 5.3 GPM | Dense, shaving-cream | 5 to 10 minutes | $50 to $505 |
| Foam gun (garden hose) | Outdoor spigot | 40 to 80 PSI, hose flow | Soapy, thinner | 1 to 3 minutes | $50 to $70 |
| Pump sprayer (iK Foam Pro 2 reference) | Tap water in tank | 3 bar (about 43.5 PSI) | Moderate, finer foam | 3 to 6 minutes | $65 to $75 |
The table no other comparison article publishes, because most of them only compare two of the three. Pressure makes the foam. The cannon wins on density because the pressure washer drives a narrow orifice (a venturi) at 1,100 PSI or higher. The gun runs on whatever your house delivers. The pump sprayer pre-pressurizes a sealed tank and uses an internal foam mesh to do the aerating work.
What each tool actually is
Foam cannon. A brass or plastic body that screws onto a pressure-washer wand via quick connect. Inside: a narrow-orifice nozzle (the venturi, a tight point that creates suction as water speeds through it), an air-mix screw, and a 32 oz soap reservoir. Water passes through a 1.1 mm or 1.25 mm hole in the reference MTM Hydro units, creating a low-pressure zone that pulls soap from the bottle. Reference floor: 1,100 PSI, 1.4 GPM on the MTM Hydro PF22.
Foam gun. A venturi-style sprayer that screws onto a standard garden hose. Same suction principle, residential water pressure (40 to 80 PSI) instead of pressure-washer output. More foam than a pump sprayer, far less than a pressure-washer cannon. Chemical Guys positions the TORQ Foam Blaster 6 as a garden-hose attachment and explicitly separates it from their pressure-washer cannons.
Pump sprayer. A handheld pressurized canister, hand-pumped (or battery-pumped on the pro units), with an internal foam mesh and adjustable nozzle. Reference unit: iK Foam Pro 2, 1.25 L usable capacity, 3 bar safety valve (about 43.5 PSI), swappable mixers to vary foam texture. No hose, no pressure washer.
The foam thickness ladder: why pressure changes everything
Foam in a cannon is generated by pressure differential across the venturi orifice (the narrow point that creates suction as the water speeds up). Water at high pressure passes through a 1.1 mm or 1.25 mm hole, the velocity rises, the pressure drops behind the orifice, and that pressure drop is what pulls soap out of the pickup tube (MJJC orifice technical post). The soap-and-water mix then passes through a mesh stack inside the cannon body where bubbles get whipped into dense foam.
Below the manufacturer floor, the pressure differential collapses, suction goes erratic, and the mesh cannot fully aerate. You get watery, soapy spray instead of foam.
The Pressure Washer Manufacturers' Association standard PW101-2010 gives the right way to compare machines: multiply PSI by GPM to get Cleaning Units. A 2,000 PSI / 1.4 GPM machine and a 1,800 PSI / 1.5 GPM machine come out near identical (2,800 CU vs 2,700 CU). PSI alone overstates the difference.
Most consumer electric pressure washers clear the cannon's PSI/GPM floor comfortably. The Karcher K5 Premium runs 2,000 PSI at 1.4 GPM (Karcher US product page). The Sun Joe SPX3000 publishes a 2,030 PSI / 1.76 GPM peak figure on the product page; the user manual lists the PWMA-rated number at 1.2 GPM. The Ryobi RY142300 runs 2,300 PSI at 1.2 GPM rated (Ryobi user manual). The PWMA-rated GPM numbers are the conservative working figures; consumer electrics at the 1.2 to 1.5 GPM band benefit from the 1.1 mm orifice swap that ships in the MTM Hydro kit.
The hardware-tier differences are spec-published. The MJJC orifice technical post documents tolerance bands on the 1.1 mm and 1.25 mm orifice; brass-bodied cannons in the named-brand tier publish those tolerances, and Amazon hardware-tier listings in the sub-25-dollar band typically publish PSI and GPM ratings but omit the orifice-tolerance and adjustable air-intake-screw spec. The lower tier converts soap into foam at a different rate than the named-brand tier at the same dilution, which is the spec lever behind "same soap, different foam."
Pick by your living situation
The right tool depends on what you have parked outside.
Apartment or condo, no hose access. Pump sprayer. The iK Foam Pro 2 (or the Adam's Polishes iK Pro 2 co-pack) is the only path that does not require a hose or a pressure washer. Fill at the kitchen sink, pump to 3 bar, walk out to the parking lot. Pair with a rinseless wash on the contact side.
Single-family home, hose only, no pressure washer. Foam gun for the visual foam, or pump sprayer for finer foam control and depressurizable convenience. The hose gun delivers more soap volume than the pump sprayer but the foam runs off faster.
Home with a pressure washer for the deck. A 35 to 80 dollar foam cannon turns the pressure washer you already own into the dwell-time machine that the other two tools cannot match.
Salt-belt winter or off-road owner. Foam cannon plus a dedicated alkaline pre-wash. The combination of high foam volume and long dwell is the closest thing to a touchless pre-rinse that home detailing offers.
Mobile detailer or fleet wash. Pump sprayer for tight spaces and engine bays; pressure washer fed from a tank for body panels.
HOA ban on driveway washing. Pump sprayer plus a rinseless wash. Surfactant on the contamination without runoff into the gutter.
The honest cost math
Real prices as of late 2025 from manufacturer and major-retailer pages. Excludes shipping and tax.
| Path | Hardware | Chemistry | Total |
|---|---|---|---|
| Pump sprayer (reference) | iK Foam Pro 2, around $50 | Snow foam concentrate, $15 to $25 | $65 to $75 |
| Pump sprayer (budget) | Generic 2 L pump foamer, $20 to $30 | Snow foam concentrate, $15 | $35 to $45 |
| Foam gun + existing hose | Chemical Guys TORQ Foam Blaster 6, $35 to $45 | Snow foam concentrate, $15 to $25 | $50 to $70 |
| Foam cannon + existing pressure washer | MTM Hydro PF22.2 or TORQ, $35 to $80 | Snow foam concentrate, $15 to $25 | $50 to $105 |

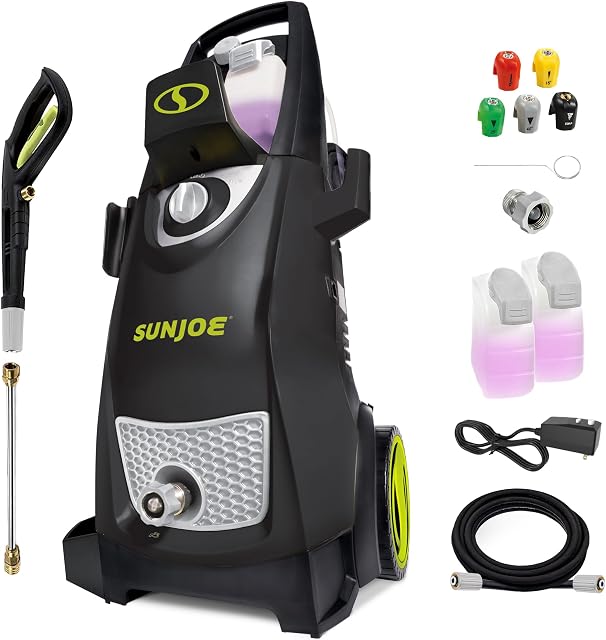

| Cannon + new budget electric PW | Sun Joe SPX3000 about $160 + cannon $40 | Concentrate $20 | $220 |

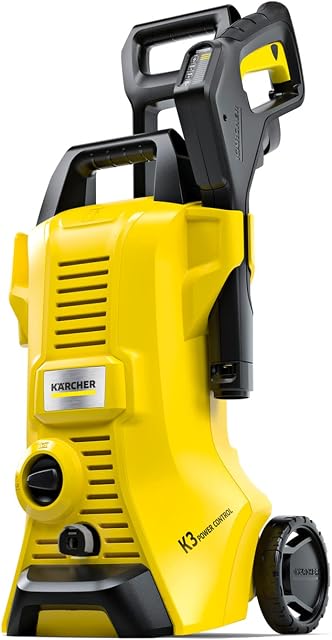

| Cannon + new mid electric PW | Karcher K3 Power Control about $230 + cannon $60 | Concentrate $25 | $315 |
| Cannon + new premium electric PW | Karcher K5 Premium about $300 to $400 + cannon $80 | Concentrate $25 | $405 to $505 |
A reader with no pressure washer: the pump sprayer path is the lowest-cost entry. A reader who already has the pressure washer for the deck and the siding: the cannon is a $50 add-on rather than a $200 to $400 standalone investment.
The soap dilution math: a 1 to 2 oz dose in a 32 oz cannon bottle, run weekly, works out to $0.50 to $2.00 per wash. Over 52 washes, that is $25 to $100 in concentrate.
What is in the reservoir: snow foam chemistry
The tool sprays the soap. The soap does the cleaning. Most "my expensive foam cannon does not clean anything" complaints are wrong-soap complaints; the cannon is doing its job.
A snow foam concentrate is a blend of surfactants. Surfactants reduce the surface tension of water so it spreads across paint instead of beading. Each molecule has a head that binds water and a tail that binds oils and road film. That dual action lifts contamination off the clear coat and traps it in the bubble (ScienceDirect surfactant overview).
The main cleaning surfactant is usually a sulfate type (the chemistry calls these anionic, meaning negatively charged), often a sodium laureth sulfate variant. The bulk foam structure comes from a co-surfactant, almost always cocamidopropyl betaine (CAPB). CAPB is what makes the bubble wall tough enough to last on a vertical panel for five-plus minutes instead of popping in thirty seconds. Stepan's Amphosol CA technical page lists CAPB's functions as foam booster and thickener (the chemistry calls these viscosity modifiers). If a product foams on contact and is gone by the time you walk around the car, the CAPB load is too low.
Cling time is the variable that matters
Foam height is impressive on social media. Dwell time on the panel is what cleans the car. A foam that piles three inches deep and slides off in 90 seconds gives the surfactants 90 seconds to lift road film. A foam that sits flatter but clings for five to ten minutes gives them ten times the working window.
Bilt Hamber publishes a typical five-minute panel dwell for Auto-Foam at a 4 percent panel impact ratio (Bilt Hamber Auto-Foam PDF). Koch Chemie GSF and most pH-neutral snow foams cluster in the same 3 to 10 minute range. The foam should not dry on the panel; if sun and wind are crusting it at three minutes, rinse now.
Two roles, two product types
The detailing market splits foaming products into two roles, and most "my snow foam does not clean" complaints come from confusing them.
Snow foam as a shampoo carrier. A pH-neutral car shampoo (designed for the wash bucket) loaded into the foam cannon for visual coverage and surfactant lubrication during the mitt pass. Mild, sealant-safe, not designed to do heavy lifting on contamination.
Dedicated pre-wash. A higher-alkalinity (or specifically formulated) chemical built to break down road film, bug residue, and bonded contamination during a five-to-ten-minute dwell without contact. These are not shampoos. Bilt Hamber Auto-Foam is the reference: the Bilt Hamber FAQ describes it as "alkaline, but importantly non-caustic" without publishing a numeric pH. Koch Chemie Gentle Snow Foam (GSF) at pH 7.5 is the coating-safe alkaline-alternative.
The point of an alkaline pre-wash is that road film is largely organic and acidic in character; alkaline cleaners emulsify (lift and suspend in water) these residues, neutral shampoos do not lift them as effectively. The trade-off is coating compatibility.
Alkaline pre-washes are not coating-friendly in heavy rotation. Coating manufacturers generally specify pH-neutral maintenance washes. The standard pattern is the alkaline pre-wash episodically (winter salt season, road-trip aftermath) and the neutral shampoo every wash.
When PPE actually matters
Most snow foam concentrates at use dilution (1 to 2 oz in 32 oz cannon bottle) carry minimal hazard. The concentrate in the bottle is a different story. Alkaline pre-washes will sting eyes and dry skin on splash at neat strength. The SDS on a dedicated pre-wash typically lists H315 (causes skin irritation) and H319 (causes serious eye irritation) at concentrate strength.
The PPE tier translates from the SDS data: concentrate at neat strength carries H315 and H319, so splash protection (nitrile gloves and safety glasses) follows from that hazard pathway during decanting. Once diluted in the cannon reservoir, the same product drops below the hazard-classification cutoff. A pH-neutral shampoo at use dilution sits below any meaningful PPE trigger. The per-product page lists the H-codes parsed from each SDS in the catalog. The full PPE-by-chemistry framework lives in the PPE for home detailers guide.
CCT picks: cannon, gun, sprayer, soap
Picks sorted by composite CCT score (Health + Quality, per the rubric), as of the frontmatter date.
Pressure-washer-mounted foam cannons are led by the MTM Hydro PF22.2 (Health 9.5, Quality 8.3, composite 8.01), the brass-bodied reference unit. The MJJC Foam Cannon S V3.0 (composite 7.12) sits in the mid-tier. The Adam's Standard Foam Cannon (composite 6.87) scores below the MTM Hydro and MJJC picks on durability with a stainless QD.
Pump sprayers are led by the iK Foam Pro 12 (Health 9.5, Quality 8.2, composite 8.02): 6 L HDPE tank, Viton seals, stainless pump, dense foam comparable to low-mid pressure cannons, replaceable seal kits. The Adam's iK Pro 2 Foaming Pump Sprayer (composite 7.03) is the smaller 64 oz unit on the same iK Foam Pro 2 hardware platform.
Foam guns are the thinnest tier. The Adam's Standard Foam Gun and the Ohuhu Car Wash Foam Gun cover the garden-hose use case; the pump sprayer covers the same use case with finer foam control and a higher score.
Snow foam concentrate in the cannon: Chemical Guys HydroSuds Ceramic Snow Foam (Health 9.5, Quality 7.8, composite 8.1) is the top-scored coating-safe snow foam in the catalog at pH 7.5 neutral. For the pressure washer side, the Sun Joe SPX3000 and the Karcher K3 Power Control are the two electric units in the catalog that clear the foam cannon's working floor.
Can you use what you already own?
Check what is in the garage before buying.
Existing pressure washer for the deck. Yes, that runs a foam cannon. Verify PSI and GPM against the manufacturer floor (1,100 PSI and 1.4 GPM for MTM Hydro, 500 PSI for the Chemical Guys Max Foam 8). Most consumer electrics in the 1,800 to 2,300 PSI range clear it. The MTM Hydro kit ships with both orifices for compatibility across the range.
Existing garden sprayer from the hardware store. No, that will not produce dense, clinging foam. A generic hand-pump sprayer (the kind sold for herbicide) sprays a soapy mist but lacks the internal foam mesh and the 3 bar pressure rating that the detailing-specific pump sprayers have.
Coin-op self-serve bay. Yes, the pre-soak nozzle at a self-serve bay is functionally a high-pressure foam dispenser. The mix dilution is fixed by the bay operator, but the basic dwell mechanic works.
The spec-tier ladder
Sub-25-dollar Amazon hardware tier. Tier-1 cannons in this band publish PSI and GPM ratings but typically omit the adjustable air-intake-screw spec and orifice-tolerance numbers. The lower tier converts soap to foam at a different rate than the $40-plus brass-bodied tier at the same dilution; the CCT picks below cite models with the spec confirmed.
Foam guns versus foam cannons by spec. Foam guns (garden-hose attachment, residential 40 to 80 PSI input) and foam cannons (pressure-washer attachment, PWMA-rated 1,100 PSI input floor) are separate hardware classes. The category page at foam gun and foam cannon distinguishes them by input-pressure spec.
Generic pump-up garden sprayers versus detailing foamers. Hardware-store hand-pump sprayers (often sold for herbicide) typically publish a 2 bar working pressure and no internal foam-mesh spec. Detailing-specific pump sprayers like the iK Foam Pro 2 publish a 3 bar safety valve and an internal foam-mesh stack with swappable mixers.
Dish soap. The full chemistry breakdown lives in the car shampoo ingredient guide; the coating-safe shampoo discussion covers why pH-neutral surfactant chemistry matters for coated paint.
Common mistakes
Six errors are behind most "my foam cannon is broken" complaints in detailing forums.
Running a cannon below the PSI floor. Below the 1,100 PSI MTM Hydro floor (or the 500 PSI Chemical Guys Max Foam 8 floor), the pressure differential across the venturi collapses and soap pickup goes erratic. The 1.1 mm orifice that ships in the MTM Hydro kit lowers the working PSI floor on consumer electrics in the 1.2 to 1.5 GPM band.
Skipping the pre-rinse. Foam laid on dry, dusty paint pins grit against the clear coat during the surfactant lift. The sequence that avoids it: rinse, foam, dwell, rinse, mitt. The full method comparison lives in the two-bucket vs rinseless vs waterless guide.
Letting the foam dry. Surfactant residue dried into paint takes more contact effort to remove than the road film it was supposed to lift.
Running an alkaline pre-wash on a coated car every wash. Coating manufacturers generally specify pH-neutral maintenance washes; the alkaline pre-wash chemistry is calibrated for episodic use (winter salt season, road-trip aftermath), not weekly.
Blaming the soap when the hardware is the variable. Same shampoo in two cannons can produce different foam. The hardware spec (orifice tolerance, mesh stack, adjustable air-intake screw) drives the foam density at a given dilution; the chemistry comparison only holds at the same hardware tier.
Treating foam as a substitute for the contact wash. Foam dwell lifts contamination; the rinse removes it; the mitt removes what is still bonded. All three steps apply on anything dirtier than light dust.
The CarCareTruth scoring lens
Every product above carries a Health Score derived from its SDS, weighted by the H-codes at concentration. Foam cannons and pump sprayers score on Quality (build, longevity, foam consistency); snow foam concentrates score on both Health and Quality (cling time, dilution flexibility, finish-safe behavior).
Catalog browse pages list every product sorted by composite score: foam cannon, foam gun, pressure washer, and pre-wash and snow foam. Wash-frequency context lives in the how often to wash your car guide; the kit-builder math lives in the detailing kit under $100, $200, $500 guide.
The whole guide in three sentences. A foam cannon needs a pressure washer (1,100 PSI and 1.4 GPM minimum) and produces the densest foam with the longest panel dwell. A foam gun runs on garden hose pressure, makes thinner foam, and is the path when there is a garden hose but no pressure washer. A pump sprayer like the iK Foam Pro 2 needs no hose at all and is the path that works for apartments, condos, and anyone without outdoor water access.
Sources
Full list with URLs in the frontmatter sources array. Hardware: MTM Hydro Parts, Chemical Guys, MJJC, Karcher, Sun Joe, Ryobi, iK Sprayers. Chemistry: Stepan, ScienceDirect, Bilt Hamber, Koch Chemie, CleanYourCar. Standards: PWMA PW101-2010.
