CarCareTruth Score
Decent.
Saved to your guest loadout. Sign up to also save to your Cabinet (consumables) or Kit (tools you own).
As an Amazon Associate I earn from qualifying purchases. Full disclosure
Last reviewed May 26, 2026

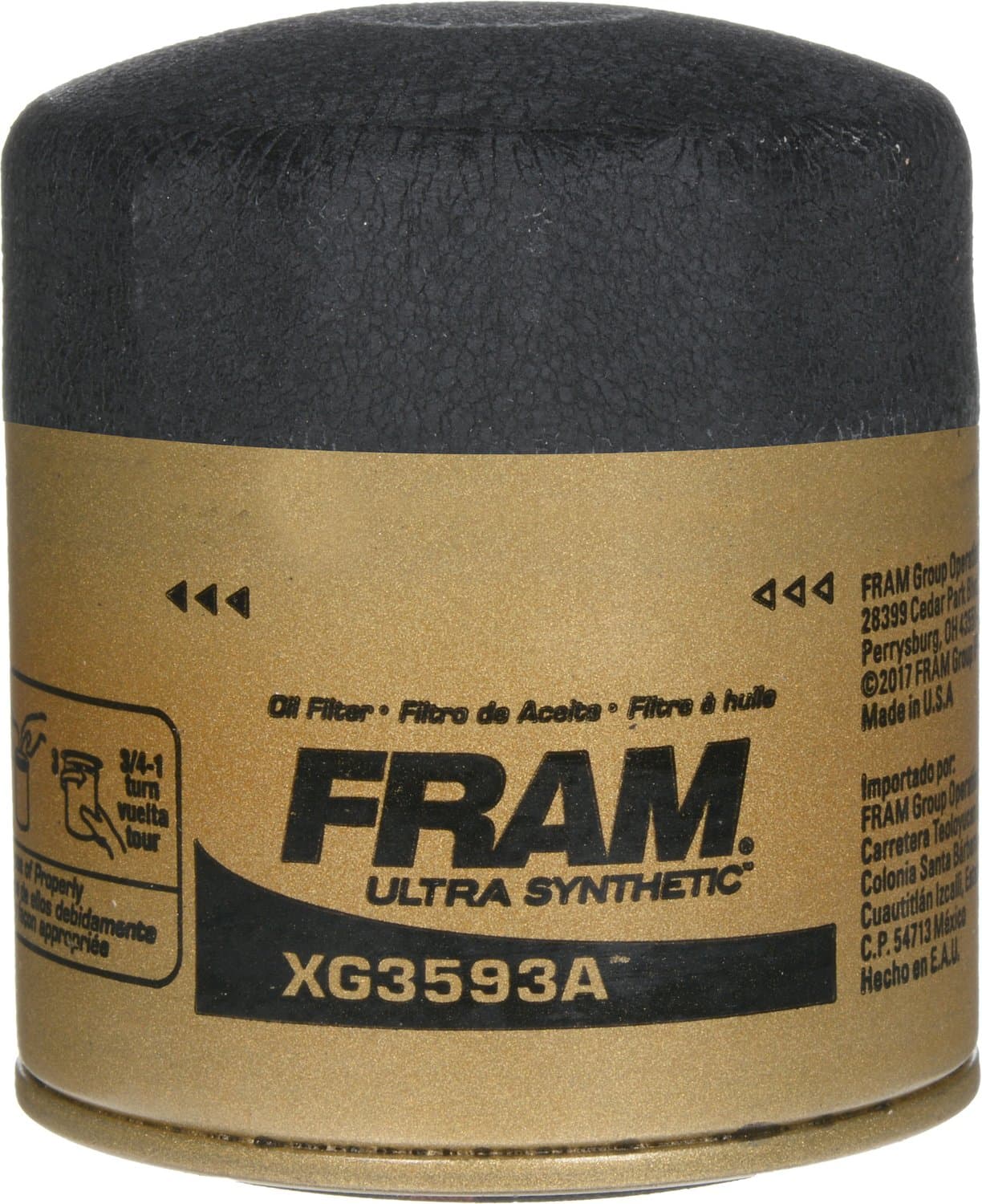

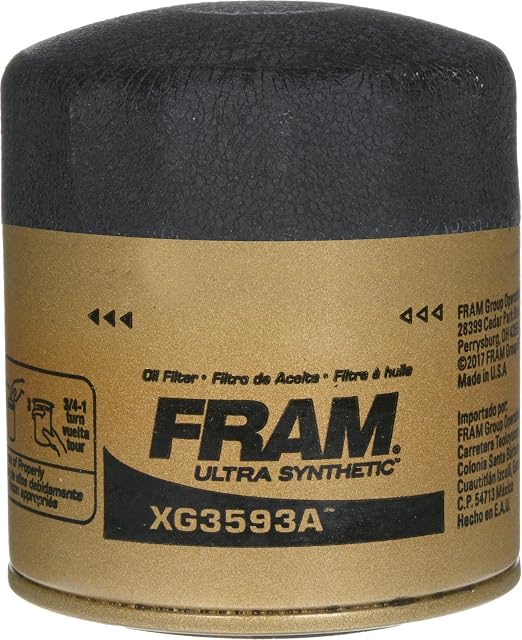

TL;DR The XG3593A is FRAM's Ultra Synthetic spin-on for Pentastar and Hemi applications on the 3/4-16 thread, with full-synthetic media and a silicone ADBV. No independent SAE J1858 data is published; BITOG XG-line cut-opens corroborate the construction and the 20,000-mile rating is community-confirmed only at 10,000.

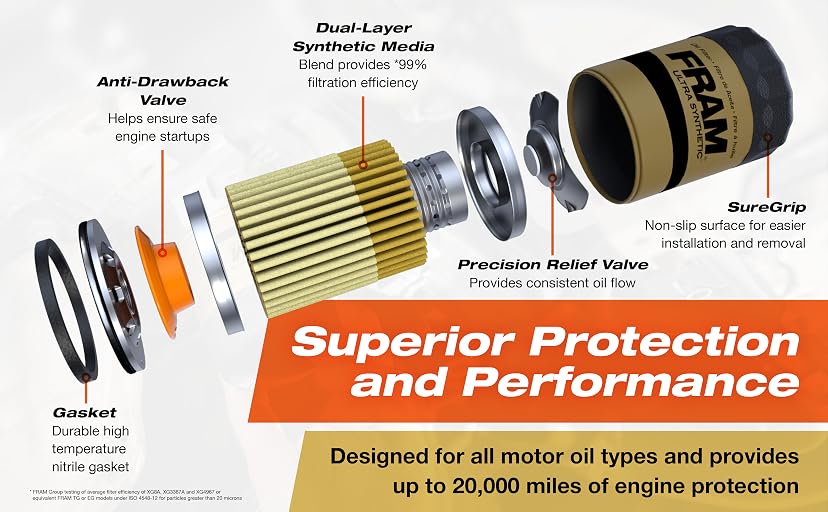

Spin-on 3/4-16 UNF filter with full-synthetic dual-layer media and a silicone anti-drain-back valve. The "99%+" efficiency claim names no micron threshold or test method, and no independent SAE J1858 or ISO 16889 data has been located. BITOG XG-line cut-opens (2017·2024) confirm the silicone ADBV, metal bypass, and metal end-caps that separate the Ultra Synthetic line from the cellulose Extra Guard PH-series. FRAM rates the line to 20,000 miles on full-synthetic oil; community 10,000-mile cut-opens corroborate pleat and ADBV integrity.
Right pick for Pentastar and Hemi applications on the 3/4-16 thread running full-synthetic oil where a confirmed silicone ADBV matters. Skip if published SAE J1858 data is a requirement, or if add-on-item and OOS friction kills it.
Passive spin-on filter · no SDS, no chemical exposure attributable to the filter itself. Drained filters are accepted at AutoZone, O'Reilly, and NAPA for recycling. At a 20,000-mile interval, consumption stays under once a year on a typical commuter.
The XG3593A shares the application footprint of the FRAM PH3593A workhorse SKU, covering Chrysler, Dodge, and Jeep applications using the 3.5L, 3.6L, and 3.7L Pentastar V6 and 5.7L Hemi V8, plus a number of Ford and GM applications using the 3/4-16 thread. Always confirm fitment for your specific year, make, model, and engine size using FRAM's application guide before installation.
No independent SAE J1858 or ISO 16889 multi-pass beta-ratio data has been located for the XG3593A. The current the product listing states '99%+ filtration efficiency' without naming a micron threshold or test method. Historical FRAM Ultra Synthetic marketing has claimed 99% at 20 microns, but no third-party test source has been published. Treat the 99%+ figure as a manufacturer hypothesis, not as evidence.

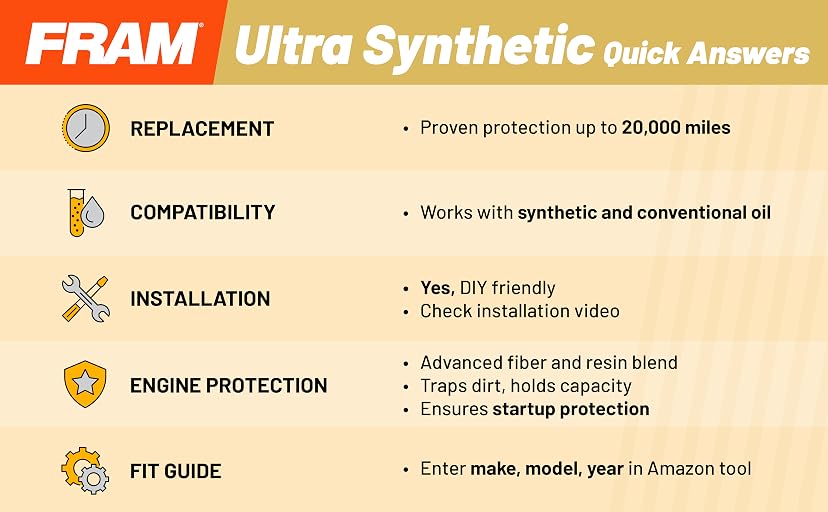

FRAM rates the Ultra Synthetic line for up to 20,000 miles when paired with full-synthetic oil. BITOG community cut-opens at approximately 10,000 miles consistently report intact pleats, functional silicone ADBV, and metal bypass valve integrity; 20,000-mile cut-opens are rarer in the public archive, so the full extended interval is partially · not fully · corroborated by independent inspection.
Yes. The XG3593A uses a silicone anti-drain-back valve (ADBV) · confirmed both in FRAM's feature bullets (which cite '3X the hot oil resistance' for the silicone ADBV) and in BITOG XG-line cut-open threads. A functional ADBV prevents oil from draining back into the pan during shutdown, reducing dry-start wear at the moment most engine wear actually occurs.
The Amazon product detail page lists a Proposition 65 warning for the XG3593A. Prop 65 warnings on metal automotive parts are typically triggered by trace amounts of listed substances in the gasket, ADBV, or canister-coating materials; the warning does not itself indicate a chemical exposure pathway during normal installation of a passive filter. The filter is scored as a physical accessory; no health deduction is applied per the oil-filter health rubric.
Marketing copy from FRAM, via Amazon. Not editorial.
