Iron Forge Cable Retractable Extension Cord Reel 40 ft

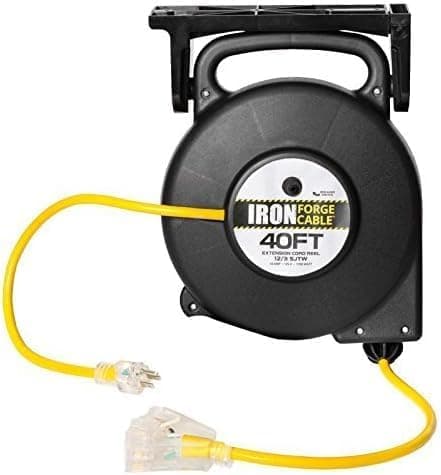

The Iron Forge Cable 40 ft reel carries 12 AWG / 3-conductor SJTW cord confirmed from the hub label visible in product imagery ("12/3 SJTW"). At 40 ft and 15 A, the 12 AWG conductor is well within NEC Table 400.5 reference · voltage drop is under 1.9 V at full rated load, leaving good headroom against the 3.75 V / 3% guideline. The listing claims 15 A / 1875 W; the hub label reads 14 A / 1750 W with a 13 A circuit breaker on the housing, a design consistent with an 80% continuous-load de-rating above the NEC 80% rule (12 A continuous from a 15 A circuit). Spring-loaded retraction with a ratcheting auto-stop locks the cord at multiple intermediate positions. Three NEMA 5-15 lighted outlets and a power indicator confirm draw at the head. The 180° swivel bracket supports both wall and ceiling installation. The review base is still modest, with no documented pattern of retraction or slip-ring failure in the available owner reports. The UL cULus mark is visible in the primary listing image but could not be located in UL Product iQ on 2026-05-21 (database returned 403 Forbidden); the certification is claimed but not database-verified.

Right choice for a garage or workshop user running standard 15 A loads · battery chargers, work lights, shop vacs, detailing polishers · over a 40 ft working radius. The 12 AWG cord matches the rated amperage with voltage-drop headroom at this length; the 180° swivel bracket accommodates most mounting configurations. Skip it for stationary tools that draw above 13·15 A continuous (large air compressors, table saws, 240 V equipment), which require a hardwired 20 A or 240 V circuit regardless of cord reel quality. Also consider skipping for applications where a database-verified UL 355 listing is required · the certification status is claimed but unconfirmed, and an alternate reel with a confirmed UL file number would be the stronger choice for unattended or high-duty-cycle installations.

UL 355 is the US product standard for cord reels · it covers heat buildup under rated load with the cord partially retracted in its housing, slip-ring assembly integrity, and outlet block thermal performance. The UL cULus mark is visible in the Iron Forge Cable listing imagery, but the certification could not be confirmed in UL Product iQ on 2026-05-21 (database inaccessible); the listing is rated at the mark-claimed level only. The 12 AWG cord matches the rated 15 A at the rated 40 ft per NEC Table 400.5 reference · the gauge is not a limiting factor at this length and amperage. A circuit breaker on the housing with manual push-button reset adds an overcurrent layer beyond the building's main breaker. On end-of-life: copper conductors are highly recyclable at any scrap metal facility; the PVC thermoplastic jacket is the non-recyclable fraction of the assembly.
